7080-40485-R310100

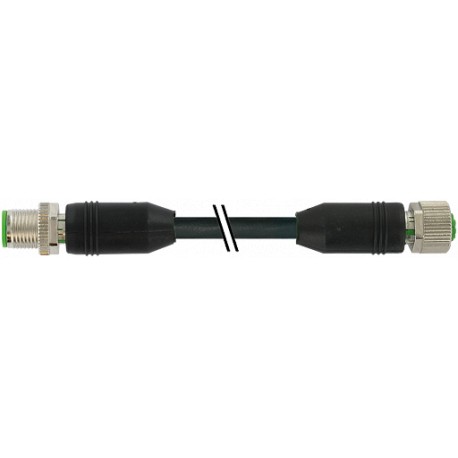

7080-40485-R310100 MURRELEKTRONIK M12 male 0° / M12 female 0° MASI RADOX EM 104 2x0.75 shielded black 1m
$0.00USD
4353 in stock
Key Specifications
AWG:similar to AWG 18
EAN:4048879720199
Form:40485
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 18 |
| EAN | 4048879720199 |
| Form | 40485 |
| Coding | A-coded |
| Shield | yes |
| eClass | 27279218 |
| Material | PUR |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| LED display | no |
| Jacket Color | black |
| Test voltage | 3500 V AC |
| Color (jacket) | black |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Diameter (core) | 2× 0.75 mm² |
| Material (wire) | Cu wire, tin plated |
| Mounting method | inserted, tightened |
| Nominal voltage | 600/1000 V AC |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Approval (cable) | DIN EN 45545-2, CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | Radox EM 104 |
| Operating voltage | max. 60 V AC/DC |
| Outer-Ø (jacket) | 5.0 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 55,00 |
| Bend radius (fixed) | 3× outer-Ø |
| Construction (core) | 19× 0.23 mm |
| Rated surge voltage | 0.8 kV |
| Bend radius (moving) | 4× outer-Ø |
| Cable identification | R31 |
| Current load capacity | according to DIN VDE 0298-4 |
| Single wire Ø (core) | 0.23 mm |
| Stranding combination | 2 wires twisted |
| customs tariff number | 85444290 |
| Wire-Ø incl. isolation | 1.62 mm ±5% |
| Color/numbering of wires | wh (bk num) |
| Material (wire isolation) | Radox EI 303 |
| Temperature range (fixed) | -50...+120 °C |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 4 A |
Product Description
M12 male 0° / M12 female 0° A-cod. shieldedRADOX EM 104 2x0.75 shielded bk 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
