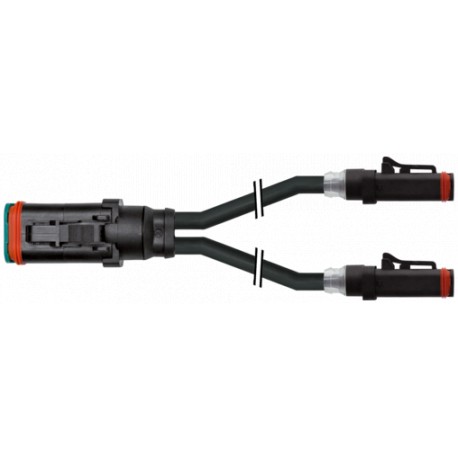

7072-77543-7540050 MURRELEKTRONIK Valve plug MDCY06-4s / 2x MDC06-2sPUR 2x0.75 bk UL/CSA+drag ch. 0.5m
$0.00USD
3715 in stock
Key Specifications
AWG:similar to AWG 18
Led:green
Form:77543
Housing:Amphenol AT06-4S and Amphenol AT06-2S
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 18 |
| Led | green |
| Form | 77543 |
| Housing | Amphenol AT06-4S and Amphenol AT06-2S |
| Material | PA |
| Shielded | No |
| Cable type | 3 (PUR) |
| Protection | IP68 in plugged in and screwed state (EN 60529) |
| Cable length | 0.5 m |
| Test voltage | 2500 V AC |
| Torque speed | 35 cycles/minute |
| Travel speed | Max. 3 m/s |
| Color (cover) | black |
| Mounting mode | inserted |
| Material group | IEC 60664-1, category III |
| Torsion stress | ±180/m |
| Nominal voltage | 300 V AC |
| Number of poles | 4/2 poles |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conforms |
| Diameter (cable) | 2× 0.75 mm² |
| Material (cable) | Cable Cu, peeled |
| Material (cover) | PUR |
| Material (gasket) | Silikona |
| Operating voltage | 12...24 V DC |
| Temperature range | -25...+85 °C, depending on cable type |
| resistance (main) | Max. 26 Ω/km (20 °C) |
| Cable Weight [G/m] | 40.7 g |
| Material (contact) | Copper alloy |
| Thermal resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Unifilar Ø (main) | 0.15 mm |
| Torsion combination | 2 threads braided |
| chemical resistance | good resistance to oils, gasoline and chemicals (EN 60811-404) |
| Ø exterior (cover) | 5.0 mm ±5% |
| Cable identification | 45W |
| Additional suppressor | Free-wheeling diode |
| Cable color/numbering | ma, az |
| Closure of the tracks | Dock connection connector |
| Current load capacity | to DIN VDE 0298-4 |
| Manufacturing (cable) | 42× 0.15 mm (multi-wire cable class 6) |
| Shore hardness (cover) | 90 ±5 A |
| Degree of contamination | 2 |
| Number of torque cycles | Max. 2 Mio. (25 °C) |
| Cable-Ø incl. Isolation | 1.7 mm ±5% |
| Temperature range (fixed) | -40...+80 °C (+90 °C to a maximum of 10,000 operating hours) |
| Material (contact surface) | Nor |
| Temperature range (mobile) | -25...+80 °C (+90 °C at a maximum of 10,000 operating hours) |
| Working current by contact | Max. 8 A |
| Material (cable insulation) | PP |
| radius of curvature (fixed) | 5× Ø exterior |
| Acceleration (energy chains) | Max. 10 m/s² |
| Radius of curvature (mobile) | 10× Ø exterior |
| Shore resistance (cable insulation) | 70 ±5 D |
| Material properties (cable insulation) | Free of CFCs, halogens, cadmium, silicone and lead |
| Product article number of manufacturer | 7072-77543-7540050 |
| Characteristics of the material (cover) | Free of CFCs, halogens, cadmium, silicone and lead, matte, low adhesion, easy to process in the machine, resistant to abrasion, hydrolysis and microbes |
| Number of bending cycles (energy chains) | Max. 10 Mio. (25 °C) |
Product Description
Valve plug MDCY06-4s / 2x MDC06-2s
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
