7072-77095-8041000

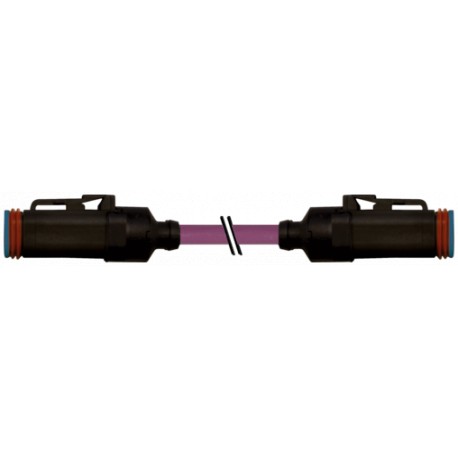

7072-77095-8041000 MURRELEKTRONIK Valve plug MDC06-4s / MDC06-4s CANopen PUR 4x0.5 shielded vt UL/CSA+drag c..
$0.00USD
4337 in stock
Key Specifications
AWG:similar to AWG 20
Form:77095
Shield:yes
Housing:Amphenol AT06-4S
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 20 |
| Form | 77095 |
| Shield | yes |
| Housing | Amphenol AT06-4S |
| Material | PA |
| Protection | IP68 inserted and tightened |
| LED display | no |
| Cable length | 10 m |
| No. of poles | 4-pole |
| Test voltage | 1500 V AC |
| Shield (Type) | Copper braid |
| Color (jacket) | violet |
| Material group | IEC 60664-1, category I |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted |
| Nominal voltage | 30 V AC |
| Resistor (core) | max. 39 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM-Style 20549/10578), CE-conform |
| Locking of ports | Snap-in connector |
| Pollution Degree | 3 |
| Material (gasket) | Silicon |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 8.2 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 97,9 g |
| Material (contact) | Copper alloy |
| thermal resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Bend radius (fixed) | 6× outer Ø |
| Construction (core) | 30× 0.15 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Bend radius (moving) | 8× outer Ø |
| Cable identification | 804 |
| optical shield cover | min. 85% |
| Additional suppressor | without components |
| Current load capacity | to DIN VDE 0298-4 |
| Single wire Ø (core) | 0.15 mm |
| Acceleration (C-track) | max. 20 m/s² |
| Travel speed (C-track) | max. 3 m/s |
| Shore hardness (jacket) | 80 ±5 A |
| Wire-Ø incl. isolation | 2.4 mm ±5% |
| Color/numbering of wires | wh, br, ye, gn |
| Temperature range (fixed) | -40...+80 °C |
| Material (contact surface) | Ni |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -30...+70 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 5 Mio. |
| Product article number of manufacturer | 7072-77095-8041000 |
| suitable for corrugated tube (internal Ø) | 10 mm |
Product Description
Valve plug MDC06-4s / MDC06-4s
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
