7072-73301-5120030

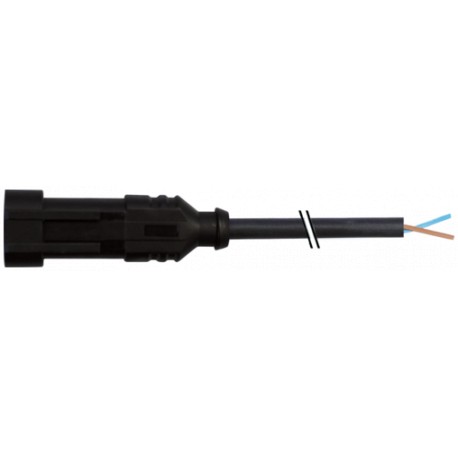

7072-73301-5120030 MURRELEKTRONIK Valve plug SuperSeal female 2-pol. with cable PUR 2x0.75 bk 0,3m
$0.00USD
4839 in stock
Key Specifications
Form:73301
Housing:AMP SuperSeal 1.5, black plastic
Material:PUR
Protection:IP67 inserted and tightened (EN 60529)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 73301 |
| Housing | AMP SuperSeal 1.5, black plastic |
| Material | PUR |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable length | 0,3 m |
| No. of poles | 2-pole |
| Mounting method | inserted |
| Locking of ports | Snap-in connector |
| Pollution Degree | 3 |
| Material (gasket) | Silicon |
| Operating voltage | max. 24 V DC |
| Temperature range | -40...+125 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Rated surge voltage | 1.5 kV |
| Additional suppressor | without components |
| Material (contact surface) | Sn |
| Operating current per contact | max. 8 A |
| Product article number of manufacturer | 7072-73301-5120030 |
| suitable for corrugated tube (internal Ø) | 11 mm |
Product Description
Valve plug SuperSeal female with cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
