7072-72041-4840500

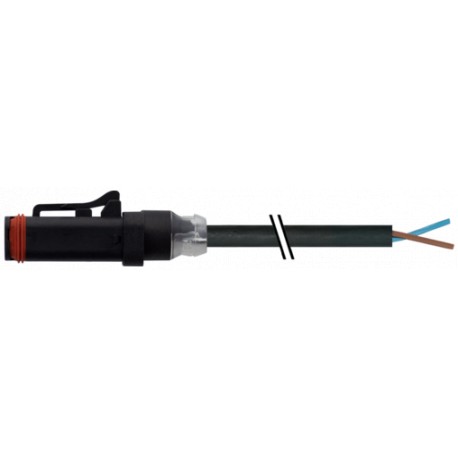

7072-72041-4840500 MURRELEKTRONIK valve plug MDC06-2s short LED+Diode with cable PUR 2x1.5 bk ADR 5m
$0.00USD
4021 in stock
Key Specifications
AWG:similar to AWG 16
Form:72041
Shield:no
Housing:Amphenol AT06-2S
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 16 |
| Form | 72041 |
| Shield | no |
| Housing | Amphenol AT06-2S |
| Material | PA |
| LED display | green |
| Cable length | 5 m |
| No. of poles | 2-pole |
| Test voltage | 2000 V AC |
| Color (jacket) | black |
| Material group | IEC 60664-1, category III |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted |
| Locking of ports | Snap-in connector |
| Pollution Degree | 2 |
| Material (gasket) | Silicon |
| Material (jacket) | PUR |
| Operating voltage | 12...24 V DC |
| Outer-Ø (jacket) | 6.6 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 73,7 |
| Material (contact) | Copper alloy |
| Rated surge voltage | 0.8 kV |
| Cable identification | 484 |
| Additional suppressor | free-wheeling diode |
| Single wire Ø (core) | 0.25 mm |
| Wire-Ø incl. isolation | 2.2 mm ±5% |
| Color/numbering of wires | bk, wh |
| Material (wire isolation) | PVC |
| Stripping length (jacket) | 20 mm |
| Material (contact surface) | Ni |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Operating current per contact | max. 8 A |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Product article number of manufacturer | 7072-72041-4840500 |
| suitable for corrugated tube (internal Ø) | 10 mm |
Product Description
Valve plug MDC06-2s short LED+Diode with cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
