In Stock Hot Product
7072-72021-1450150

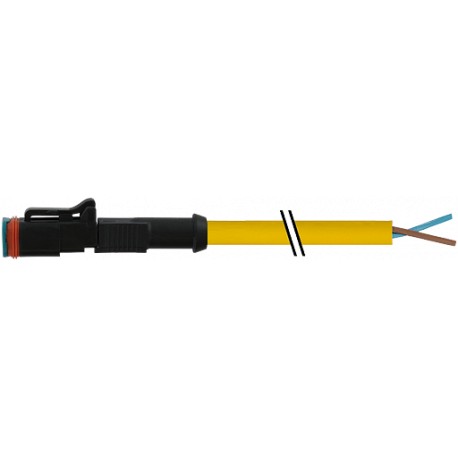

7072-72021-1450150 MURRELEKTRONIK Valve plug MDC06-2s LED with cable PUR 2x0.75 yellow UL/CSA + drag chain 1..
$0.00USD
4068 in stock
Key Specifications
AWG:similar to AWG 18
EAN:4048879505239
Form:72021
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 18 |
| EAN | 4048879505239 |
| Form | 72021 |
| Shield | no |
| eClass | 27279218 |
| Housing | Amphenol AT06-2S or Deutsch DT06-2S |
| Material | PA |
| Outer Ø | 5.0 mm ±5% |
| Cable Type | 3 (PUR) |
| Protection | IP68 inserted and tightened |
| LED display | yellow |
| Jacket Color | yellow |
| Test voltage | 2500 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | yellow |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±180°/m |
| Wire isolation | PP (br, bl) |
| Diameter (core) | 2× 0.75 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Locking of ports | Snap-in connector |
| Pollution Degree | 3 |
| Material (gasket) | Silicon |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | 12...30 V AC/DC |
| Outer-Ø (jacket) | 5.0 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 10 Mio. |
| Cable weight [g/m] | 40,70 |
| thermal resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 42× 0.15 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 145 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| No./diameter of wires | 2× 0.75 mm² |
| Single wire Ø (core) | 0.15 mm |
| Stranding combination | 2 wires twisted |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 10 m/s² |
| Travel speed (C-track) | max. 3 m/s |
| Shore hardness (jacket) | 90 ±5 A |
| Wire-Ø incl. isolation | 1.7 mm ±5% |
| Color/numbering of wires | br, bl |
| Material (wire isolation) | PP |
| Stripping length (jacket) | 20 mm |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -25...+80 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
| Shore hardness (wire isolation) | 70 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| suitable for corrugated tube (internal Ø) | 11 mm |
Product Description
Valve plug MDC06-2s LED with cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
