7072-70001-7500300

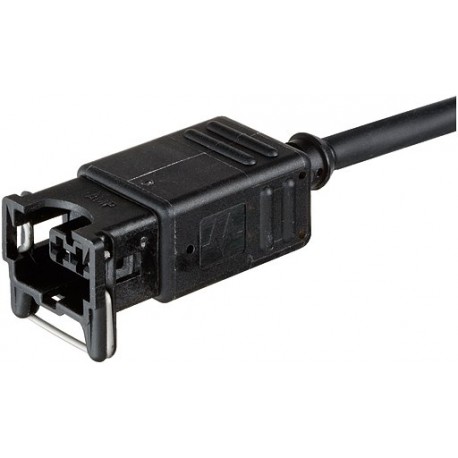

7072-70001-7500300 MURRELEKTRONIK Junior Timer valve plug 0° with cable PUR 2x0,75 black 3m
$0.00USD
3972 in stock
Key Specifications
AWG:similar to AWG 18
EAN:4048879316675
Form:70001
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 18 |
| EAN | 4048879316675 |
| Form | 70001 |
| Shield | no |
| eClass | 27279218 |
| Housing | Black plastic, flame retardant |
| Outer Ø | 5.9 mm ±5% |
| Protection | IP65 inserted and tightened (EN 60529) |
| Cable number | 750 |
| Jacket Color | black |
| Test voltage | 2000 V AC |
| Color (jacket) | black |
| Packaging unit | 1 |
| Wire isolation | PVC (br, bl) |
| Diameter (core) | 2× 0.75 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Approval (cable) | CE conform |
| Locking material | Stainless steel 1.4305 (V2A) |
| Material (jacket) | PUR/PVC |
| Operating voltage | max. 230 V AC/DC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 48,40 |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 15× outer Ø |
| Cable identification | 750 |
| No./diameter of wires | 2× 0.75 mm² |
| Single wire Ø (core) | 0.2 mm |
| Stranding combination | 2 wires twisted |
| customs tariff number | 85444290 |
| Color/numbering of wires | br, bl |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -5...+80 °C |
| Operating current per contact | max. 4 A |
Product Description
Valve plug MJC 0° with cable V2APUR 2x0.75 bk 3m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
