In Stock Hot Product
7072-40261-7370150

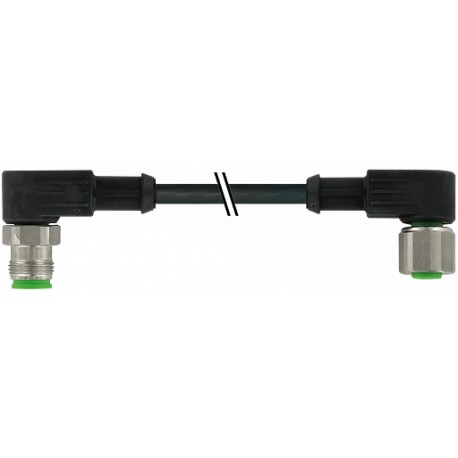

7072-40261-7370150 MURRELEKTRONIK M12 Xtreme male 90° / M12 female 90° PUR 4x0.5 black UL/CSA + drag chain 1..
$0.00USD
3488 in stock
Key Specifications
AWG:similar to AWG 20
EAN:4048879547130
Form:40261
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 20 |
| EAN | 4048879547130 |
| Form | 40261 |
| Shield | no |
| eClass | 27279218 |
| Weight: | 0.085 kg |
| Art.No.: | 7072-40261-7370150 |
| Outer Ø | 4.9 mm ±5% |
| Cable Type | 3 (PUR) |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | black |
| Test voltage | 2 500 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | black |
| Packaging unit | 1 |
| Torsion stress | ±180°/m |
| Wire isolation | PP (br, wh, bl, bk) |
| Diameter (core) | 4 × 0.5 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 39 Ω/km (20 °C) |
| Approval (cable) | cRUus (AWM-Style 20549/10493); CE conform |
| Locking material | Stainless steel 1.4305 (V2A) |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 250 V AC/DC |
| Outer-Ø (jacket) | 4.9 mm ±5% |
| country of origin | DE |
| C-track properties | 10 Mio. |
| Cable weight [g/m] | 44,00 |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Bend radius (fixed) | 5 × outer Ø |
| Construction (core) | 28 × 0.15 mm (multi-strand wire class 6) |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 10 × outer Ø |
| Cable identification | 737 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| No./diameter of wires | 4 × 0.5 mm² |
| Single wire Ø (core) | 0.19 mm |
| Stranding combination | 4 wires twisted |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 10 m/s² |
| Travel speed (C-track) | max. 3 m/s |
| Shore hardness (jacket) | 90 ±5 A |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -25...+80 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
| Shore hardness (wire isolation) | 70 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
Product Description
M12 Xtreme male 90° / M12 female 90° A-cod.PUR 4x0.5 bk UL/CSA+drag ch. 1.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
