7060-40485-5420800

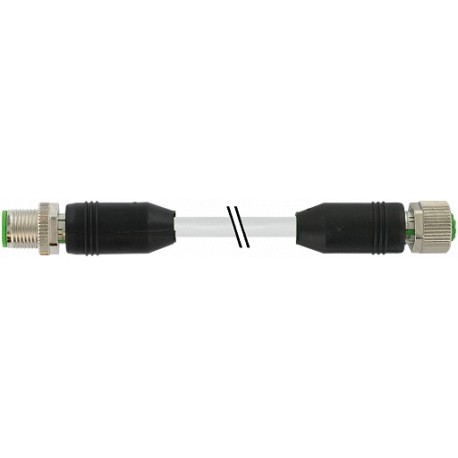

7060-40485-5420800 MURRELEKTRONIK M12 male 0° / M12 female 0° MASI PUR-OB 2x1,0 shielded gray drag chain 8m
$0.00USD
4897 in stock
Key Specifications
AWG:similar to AWG 17
EAN:4048879523097
Form:40485
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 17 |
| EAN | 4048879523097 |
| Form | 40485 |
| Coding | A-coded |
| Shield | yes |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 8.0 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP67, IP68 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 542 |
| Jacket Color | gray |
| Test voltage | 2000 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±90°/m |
| Wire isolation | PP (br, bl) |
| Diameter (core) | 2× 1.0 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 19.5 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 21198/10493), CSA |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 60 V AC/DC |
| Outer-Ø (jacket) | 8.0 mm ±5% |
| country of origin | DE |
| C-track properties | 5 Mio. |
| Cable weight [g/m] | 82,50 |
| thermal resistance | flame retardant UL, CSA FT2 / IEC 60332-2-2 |
| Bend radius (fixed) | 10× outer Ø |
| Construction (core) | 55× 0.15 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Bend radius (moving) | 15× outer Ø |
| Cable identification | 542 |
| optical shield cover | min. 80% |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 5 Mio. |
| No./diameter of wires | 2× 1.0 mm² |
| Single wire Ø (core) | 0.15 mm |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 2 m/s |
| Shore hardness (jacket) | 90 ±5 A |
| Wire-Ø incl. isolation | 2.7 mm ±5% |
| Color/numbering of wires | br, bl |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -25...+60 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Shore hardness (wire isolation) | 70 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
Product Description
M12 male 0° / M12 female 0° A-cod. shieldedPUR 2x1.0 shielded gy drag ch. 8m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
