In Stock Hot Product
703057

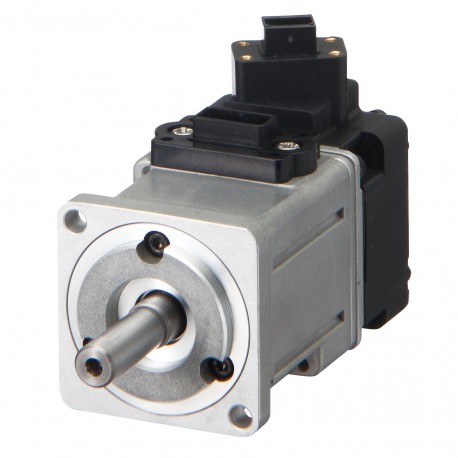

R88M-K05030H-S2 703057 R88MK05030HS2ALT OMRON G5 series AC servo motor, 50 W, 200 VAC, 3000 rpm, 0.16 Nm, In..
$0.00USD
3029 in stock
Key Specifications
():R88A-CRKA020CR-E
Weight:320 g
Peak torque:0.48 Nm
Rated speed:3000 Rpm
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | R88A-CRKA020CR-E |
| Weight | 320 g |
| Peak torque | 0.48 Nm |
| Rated speed | 3000 Rpm |
| Encoder type | Incremental |
| Rated output | 0.05 kW |
| Rated torque | 0.16 Nm |
| Shaft diameter | 8 mm |
| Shaft with key | |
| Shaft with tap | |
| Motor with brake | |
| Encoder resolution | 20 Bit |
| Motor with oil seal | |
| Drive supply voltage | 230 V single phase |
| Servo control method | Analog, EtherCAT, MECHATROLINK II, Pulse train |
| Flange size square (LC) | 40 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
