7030-12931-0000000

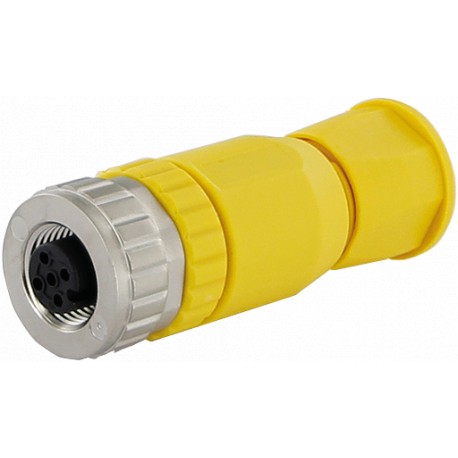

7030-12931-0000000 MURRELEKTRONIK M12 female 0° self wireable screw terminals 5-pol. 0,14 1,5mm², 2,5-8mm ca..
$0.00USD
4402 in stock
Key Specifications
EAN:4048879661898
Form:12931
Coding:A-coded
eClass:27279221
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879661898 |
| Form | 12931 |
| Coding | A-coded |
| eClass | 27279221 |
| Weight: | 0.055 kg |
| Art.No.: | 7030-12931-0000000 |
| Material | PA |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material group | IEC 60664-1, category III |
| Packaging unit | 1 |
| Locking of ports | Screw thread (M12×1) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Material (gasket) | FKM |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -30...+85 °C |
| country of origin | CZ |
| customs tariff number | 85366990 |
| Sealing range (cable Ø) | 4...8 mm |
| Operating current per contact | max. 4 A |
Product Description
M12 female 0° A-cod. screw terminal5-pol. 0,14 - 1,5mm², 2,5 - 8mm
