7024-46041-5230800

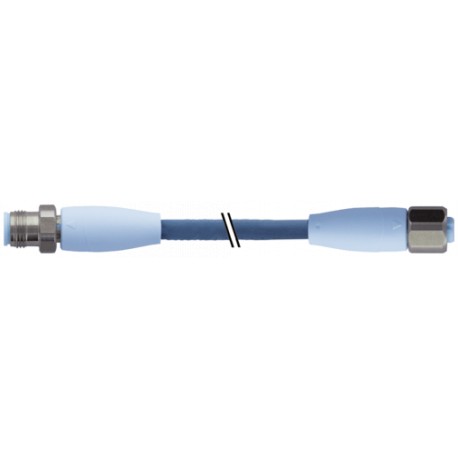

7024-46041-5230800 MURRELEKTRONIK M12 male 0° / M12 female 0° Cube67 F&BPro TPE-S 0.5+0.25 shielded bu UL ro..
$0.00USD
4125 in stock
Key Specifications
AWG:similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²)
Form:46041
Coding:A-coded
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²) |
| Form | 46041 |
| Coding | A-coded |
| Shield | yes |
| Material | PP |
| Standards | DIN EN 61076-2-101 (M12), FDA conform |
| Protection | IP65, IP68, IP69K inserted and tightened (EN 60529) |
| LED display | no |
| Cable length | 8 m |
| Jacket Color | gray |
| No. of poles | 6 |
| Test voltage | 3000 V |
| Shield (Type) | Copper braid |
| Color (jacket) | pastel blue |
| Material group | IEC 60664-1, category I |
| Torsion stress | ±180°/m |
| Diameter (core) | 4× 0.5 + 2× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 39 Ω/km (0.5 mm²), max. 78 Ω/km (0.25 mm²); (20 °C) |
| Approval (cable) | UL (AWM-Style 22126/11558), CE conform |
| Locking material | Stainless steel 1.4404 (V4A) |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW14) |
| Material (gasket) | EPDM |
| Material (jacket) | TPE-S |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 7.9 mm ±5% |
| Temperature range | -40...+105 °C, depending on cable quality |
| Cable weight [g/m] | 82,5 g |
| Material (contact) | Copper alloy |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 28× 0.15 mm (0.5 mm²); 32× 0.1 mm (0.25 mm²); (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 523 |
| optical shield cover | min. 80% |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| Single wire Ø (core) | 0.15 mm (0.5 mm²); 0.1 mm (0.25 mm²) |
| Acceleration (C-track) | max. 10 m/s² |
| Travel speed (C-track) | max. 3 m/s |
| Wire-Ø incl. isolation | 1.5 mm ±5% (0.5 mm²); 1.4 mm ±5% (0.25 mm²) |
| Color/numbering of wires | (bl, wh, br, bk) + (gr, pk) |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+105 °C |
| Material (contact carrier) | PP, ice blue |
| Material (contact surface) | Au |
| Temperature range (mobile) | -25...+105 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 4 Mio. (25 °C) |
| Product article number of manufacturer | 7024-46041-5230800 |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 male 0° / M12 female 0° A-cod. F&B Pro
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
