In Stock Hot Product
7014-17161-9730100

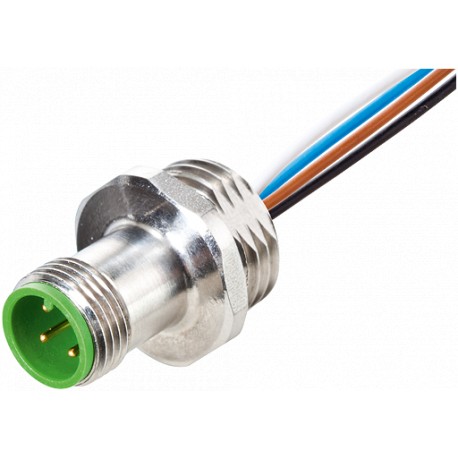

7014-17161-9730100 MURRELEKTRONIK M12 male receptacle A-cod. front mount F&B PP 8x0,25 1m
$0.00USD
4077 in stock
Key Specifications
EAN:4048879413923
Form:17161
Coding:A-coded
eClass:27279220
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879413923 |
| Form | 17161 |
| Coding | A-coded |
| eClass | 27279220 |
| Outer Ø | 1.25 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 973 |
| No. of poles | 8 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PUR (wh, br, gn, ye, gr, pk, bl, rd) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Stainless steel 1.4404 (V4A) |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW14) |
| Operating voltage | max. 30 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Bend radius (fixed) | 10× outer Ø |
| Rated surge voltage | 0.8 kV |
| No./diameter of wires | 8× 0.25 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 2 A |
Product Description
M12 male recept. A-cod. front F<(>&<)>BPUR-wires 8x0.25 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
