7014-13281-3485000

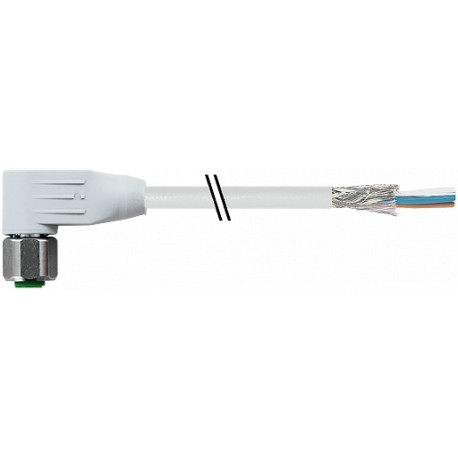

7014-13281-3485000 MURRELEKTRONIK M12 female 90° with cable F&B PVC 5X0.34 shielded yellow 50m
$0.00USD
4374 in stock
Key Specifications
EAN:4048879392402
Form:13281
Coding:A-coded
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879392402 |
| Form | 13281 |
| Coding | A-coded |
| Shield | yes |
| eClass | 27279218 |
| Weight: | 2.87 kg |
| Art.No.: | 7014-13281-3485000 |
| Outer Ø | 5.9 mm ±5% |
| Protection | IP65, IP68 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 348 |
| Jacket Color | gray |
| No. of poles | 5 |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC (br, wh, bl, bk, gnye) |
| Mounting method | inserted, tightened |
| Approval (cable) | CE conform |
| Locking material | Stainless steel 1.4404 (V4A) |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Material (jacket) | PVC |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Bend radius (fixed) | 10 × outer Ø |
| Rated surge voltage | 1.5 kV |
| Bend radius (moving) | 15 × outer Ø |
| No./diameter of wires | 5 × 0.34 mm² |
| customs tariff number | 85444290 |
| Stripping length (jacket) | 20 mm |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Operating current per contact | max. 4 A |
Product Description
M12 female 90° A-cod. with cable shielded F&BPVC 5x0.34 shielded gy 50m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
