7005-41201-0000000

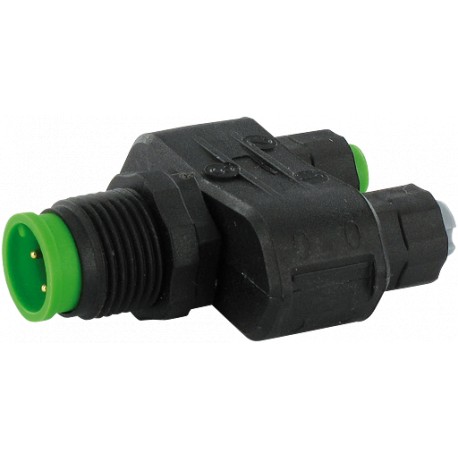

7005-41201-0000000 MURRELEKTRONIK T-coupler M12 male / M8 female 0° LITE
$0.00USD
4020 in stock
Key Specifications
EAN:4048879413947
Form:41201
Coding:A-coded
eClass:27279218
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879413947 |
| Form | 41201 |
| Coding | A-coded |
| eClass | 27279218 |
| Art.No.: | 7005-41201-0000000 |
| Material | PUR |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Locking material | PA |
| Locking of ports | Screw thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW9), M12 (SW13) |
| Material (gasket) | FKM |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Rated surge voltage | 1.5 kV |
| Alternative product: | Product ComparisonT-couplerMale straight – females straightM12, 4-pole – M8, 3-poleDistribution function (NO)7005 - plastic hexagonal screw (M12/M8 Lite)Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm41201Technical DataOperating voltagemax. 50 V AC/60 V DCOperating voltage (only UL listed)max. 30 V AC/DCRated surge voltage1.5 kVOperating current per contactmax. 4 AMaterial groupIEC 60664-1, category ICodingA-codedLocking of portsScrew thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securingCompression glandM8 (SW9), M12 (SW13)ProtectionIP67 inserted and tightened (EN 60529)Locking materialPAMaterialPURGeneral dataPollution Degree3Temperature range-25...+85 °CMaterial (gasket)FKMCommercial datacountry of originDEcustoms tariff number85366990EAN4048879413947eClass27279218Packaging unit1 |
| customs tariff number | 85366990 |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
Product Description
T-Coupler M12 male / M8 female A-cod. Lite4-pol. / 2x 3-pol.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
