In Stock Hot Product
7005-41133-0000000

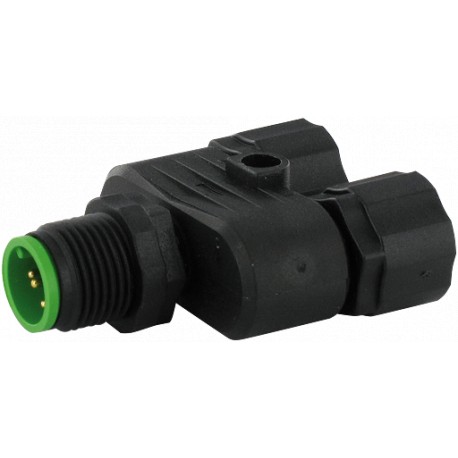

7005-41133-0000000 MURRELEKTRONIK T-coupler SlimLine M12 male / 2x M12 female Lite
$0.00USD
4674 in stock
Key Specifications
EAN:4048879559225
Form:41133
Coding:A-coded
eClass:27279218
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879559225 |
| Form | 41133 |
| Coding | A-coded |
| eClass | 27279218 |
| Weight: | 0.029 kg |
| Art.No.: | 7005-41133-0000000 |
| Material | PUR |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Rated surge voltage | 1.5 kV |
| customs tariff number | 85366990 |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
Product Description
T-Coupler SlimLine M12 male/2xM12 fem. A-cod. Lite5-pol. / 2x 4-pol.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
