7005-40551-8030800

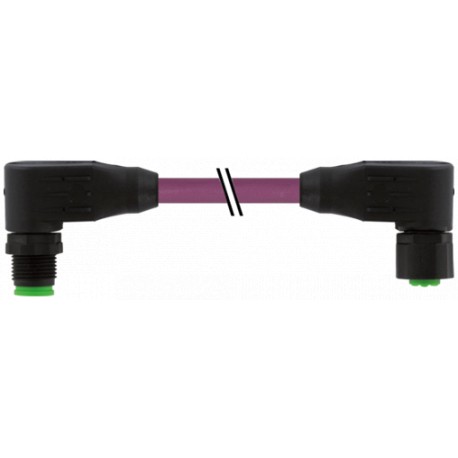

7005-40551-8030800 MURRELEKTRONIK M12 male 90° / M12 fem. 90° Lite CANopen/DeviceNet PUR AWG24+AWG22 shielde..
$0.00USD
3516 in stock
Key Specifications
AWG:similar to AWG 24 (0.25 mm²); similar to AWG 22 (0.34 mm²)
Form:40551
Coding:A-coded
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 24 (0.25 mm²); similar to AWG 22 (0.34 mm²) |
| Form | 40551 |
| Coding | A-coded |
| Shield | yes |
| Material | PUR |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable length | 8 m |
| No. of poles | 5 |
| Test voltage | 2000 V AC (test duration 1 min) |
| Shield (Type) | Copper braid |
| Color (jacket) | violet |
| Material group | IEC 60664-1, category I |
| Material (wire) | Cu wire, tin plated |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V |
| Resistor (core) | max. 78 Ω/km (data pair, max. 54 Ω/km (power pair); (20 °C) |
| Approval (cable) | cURus (AWM style 20549/10578); CE compliant |
| Locking material | PA |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR |
| Operating voltage | max. 60 V AC/DC |
| Outer-Ø (jacket) | 6.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 63,12 g |
| thermal resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Bend radius (fixed) | 6× outer Ø |
| Rated surge voltage | 1.5 kV |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 803 |
| optical shield cover | min. 65% |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 3 m/s |
| Wire-Ø incl. isolation | 2.1 mm ±5% (0.25 mm²); 1.5 mm ±5% (0.34 mm²) |
| Color/numbering of wires | wh, bl (data pair); bk, rd (power pair) |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 1 Mio. (25 °C) |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| Product article number of manufacturer | 7005-40551-8030800 |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 male 90° / M12 female 90° A-cod. Lite
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* only for products with UL/CSA approved cable
