7004-94031-6162000

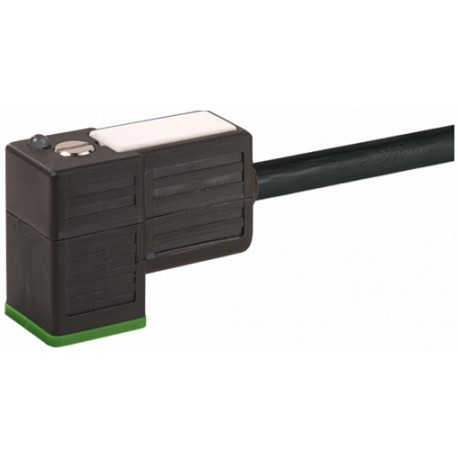

7004-94031-6162000 MURRELEKTRONIK MSUD valve plug form CI 9,4mm with cable V4A PVC 3x0.75 bk 20m
$0.00USD
3894 in stock
Key Specifications
AWG:similar to AWG 18
Form:94031
Shield:no
Housing:Black plastic (gray on request)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 18 |
| Form | 94031 |
| Shield | no |
| Housing | Black plastic (gray on request) |
| Cable Type | 1 (PVC) |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| LED display | yellow |
| Cable length | 20 m |
| Test voltage | 3000 V AC |
| Color (jacket) | black |
| Material group | IEC 60664-1, category I |
| Diameter (core) | 3× 0.75 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300/500 V AC |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Switch off peak | max. 55 V |
| Approval (cable) | CE conform |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Pollution Degree | 3 |
| Material (jacket) | PVC |
| Operating voltage | 24 V AC ±20% / DC ±25% |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 61,6 g |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 616 |
| Current load capacity | to DIN VDE 0298-4 |
| Single wire Ø (core) | 0.2 mm |
| Stranding combination | 3 wires twisted |
| Switch off delay time | max. 20 ms |
| Shore hardness (jacket) | 80 ±5 A |
| Wire-Ø incl. isolation | 1.8 mm ±5% |
| Color/numbering of wires | bk numbered, gnye longitudinally striped |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -30...+70 °C |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Temperature range (mobile) | -5...+70 °C |
| Operating current per contact | max. 4 A |
| Shore hardness (wire isolation) | 43 ±5 D |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Product article number of manufacturer | 7004-94031-6162000 |
Product Description
MSUD valve plug CI-9.4mm with cable V4A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
