In Stock Hot Product
7004-41121-0000000

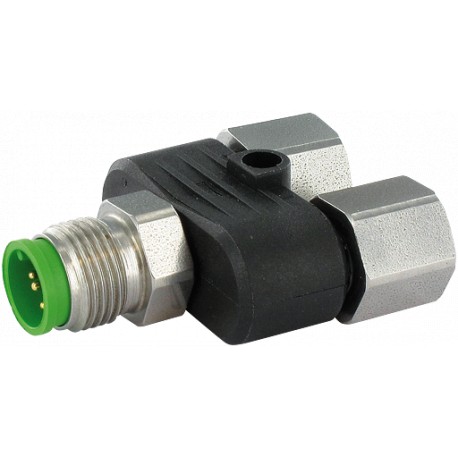

7004-41121-0000000 MURRELEKTRONIK T-coupler M12 male / M12 female V4A
$0.00USD
3060 in stock
Key Specifications
EAN:4048879688512
Form:41121
Coding:A-coded
eClass:27279218
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879688512 |
| Form | 41121 |
| Coding | A-coded |
| eClass | 27279218 |
| Weight: | 0.027 kg |
| Art.No.: | 7004-41121-0000000 |
| Material | PUR |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| No. of poles | 5-, 4-pole |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Mounting method | inserted, tightened |
| Locking material | Stainless steel 1.4404 (V4A) |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (gasket) | FKM |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Material (contact) | Copper alloy |
| Rated surge voltage | 1.5 kV |
| customs tariff number | 85366990 |
| Material (contact surface) | Au |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | 30 V AC/DC |
| suitable for corrugated tube (internal Ø) | without |
Product Description
T-Coupler M12 male / M12 female A-cod. V4A5-pol. / 2x 4-pol.
