In Stock Hot Product
7004-12761-0000000

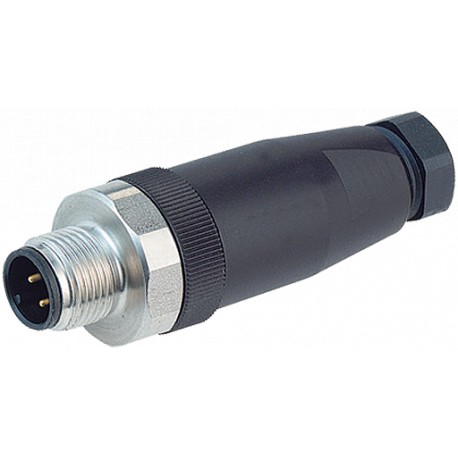

7004-12761-0000000 MURRELEKTRONIK M12 male 0° field-wireable SCREW V4A 5-pol. max.0,75mm² 6-8mm
$0.00USD
4291 in stock
Key Specifications
EAN:4048879110952
Form:12761
eClass:27279221
Art.No.::7004-12761-0000000
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879110952 |
| Form | 12761 |
| eClass | 27279221 |
| Art.No.: | 7004-12761-0000000 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Packaging unit | 1 |
| Locking material | Stainless Steel 1.4404 (V4A) |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Operating voltage | max. 125 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Alternative product: | Product ComparisonF&BMale straightM12, 5-poleSealing range (cable Ø): 6...8 mmStainless steel 1.4404 (V4A)Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm12761Technical DataOperating voltagemax. 125 V AC/DCOperating current per contactmax. 4 AConnection cross sectionmax. 0.75 mm²Sealing range (cable Ø)6...8 mmLocking of portsScrew thread M12 × 1 mm (recommended torque 0.6 Nm) self-securingProtectionIP67 inserted and tightened (EN 60529)Locking materialStainless Steel 1.4404 (V4A)General dataTemperature range-25...+85 °CCommercial datacountry of originDEcustoms tariff number85369010EAN4048879110952eClass27279221Packaging unit1 |
| customs tariff number | 85369010 |
| Connection cross section | max. 0.75 mm² |
| Sealing range (cable Ø) | 6...8 mm |
| Operating current per contact | max. 4 A |
Product Description
M12 male 0° A-cod. screw terminal V4A5-pol., max. 0,75mm², 6 - 8mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
