7003-40128-8280200

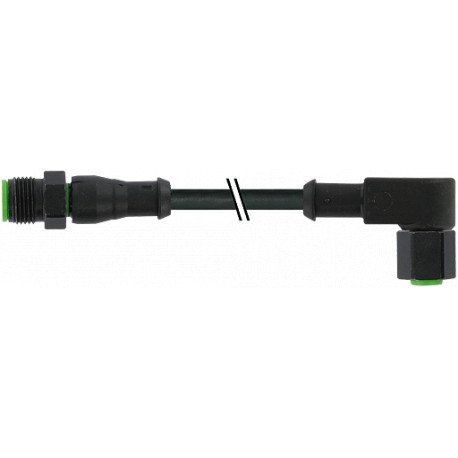

7003-40128-8280200 MURRELEKTRONIK M12 SC male 0° / M12 female 90° FEP-JB 5x0,38 black 2m
$0.00USD
3485 in stock
Key Specifications
EAN:4048879474771
Form:40128
Coding:A-coded
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879474771 |
| Form | 40128 |
| Coding | A-coded |
| Shield | no |
| eClass | 27279218 |
| Weight: | 0.097 kg |
| Art.No.: | 7003-40128-8280200 |
| Material | PUR |
| Outer Ø | 4.3 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| Cable number | 828 |
| Jacket Color | black |
| Test voltage | 2 000 V AC |
| Color (jacket) | black |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | FEP (br, wh, bl, bk, gnye) |
| Diameter (core) | 5 × AWG 22 |
| Material (wire) | Cu wire, tin plated |
| Nominal voltage | 600 V AC |
| Resistor (core) | max. 52 Ω/km (20 °C) |
| Approval (cable) | CE |
| Locking material | Stainless steel 1.4305 (V2A) PTFE coated |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (gasket) | FKM |
| Material (jacket) | FEP |
| Operating voltage | max. 250 V AC/DC |
| Outer-Ø (jacket) | 4.3 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 40,70 |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 7.5 × outer Ø |
| Construction (core) | 19 × 0.160 mm |
| Rated surge voltage | 2.5 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Bend radius (moving) | 15 × outer Ø |
| Cable identification | 828 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 5 × AWG 22 |
| Single wire Ø (core) | 0.160 mm |
| Stranding combination | 5 wires twisted around central filler |
| customs tariff number | 85444290 |
| Shore hardness (jacket) | 57 ±5 D |
| Wire-Ø incl. isolation | 1.3 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh, gnye longitudinally striped |
| Material (wire isolation) | FEP |
| Temperature range (fixed) | -100...+180 °C |
| Temperature range (mobile) | -100...+180 °C |
| Operating current per contact | max. 4 A |
| Shore hardness (wire isolation) | 55 ±5 D |
| suitable for corrugated tube (internal Ø) | 10 mm |
Product Description
M12 male 0° / M12 female 90° A-cod. V2AFEP 5xAWG22 bk 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
