7002-P4291-9800050

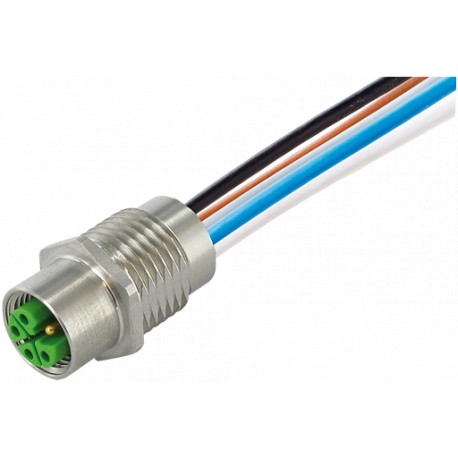

7002-P4291-9800050 MURRELEKTRONIK M12 Power female receptacle L-coded front mount V2A PUR 5x1.5 0,5m
$0.00USD
4169 in stock
Key Specifications
EAN:4048879630122
Form:P4291
Coding:L-coded
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879630122 |
| Form | P4291 |
| Coding | L-coded |
| Shield | no |
| eClass | 27279221 |
| Outer Ø | 2.4 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable number | 980 |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PUR (br, wh, bl, bk, gr) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Stainless steel 1.4305 (V2A) |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW17) |
| Operating voltage | max. 63 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Bend radius (fixed) | 7.5× outer Ø |
| Rated surge voltage | 1.5 kV |
| No./diameter of wires | 5× 1.5 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 16 A |
Product Description
M12 Power female recept. L-cod. front V2APUR-wires 5x1.5 0.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
