7002-78211-0000000

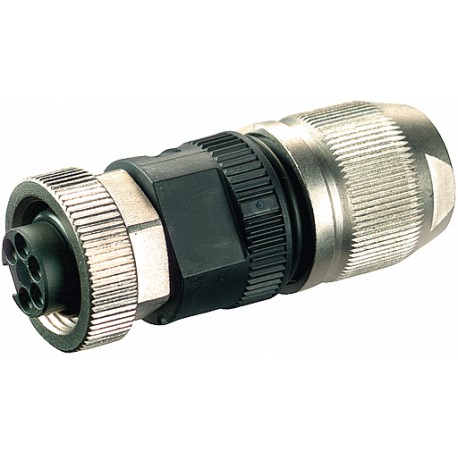

7002-78211-0000000 MURRELEKTRONIK MOSA 7/8'' FEMALE 0° FIELD-WIREABLE (IDC) V2A
$0.00USD
4801 in stock
Key Specifications
EAN:4048879111454
Form:78211
Coding:A-coded, 5-pole
eClass:27279221
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879111454 |
| Form | 78211 |
| Coding | A-coded, 5-pole |
| eClass | 27279221 |
| Weight: | 0.084 kg |
| Art.No.: | 7002-78211-0000000 |
| Material | PA |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Outer wire Ø | max. 2.8 mm |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC, PP, TPE |
| Locking material | Stainless steel 1.4305 (V2A) |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Pollution Degree | 3 |
| Operating voltage | max. 230/400 V AC/DC |
| Temperature range | -40...+85 °C |
| country of origin | DE |
| Rated surge voltage | 4 kV |
| customs tariff number | 85366990 |
| Connection cross section | 0.75...1.5 mm² (conductor diameter min. 0.15 mm) |
| Sealing range (cable Ø) | 6.8...9.5 mm |
| Operating current per contact | max. 10 A |
Product Description
7/8'' female 0° IDC V2A5-pol., 0,75 - 1,5mm², 6,8 - 12,5mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
