7002-42141-0000000

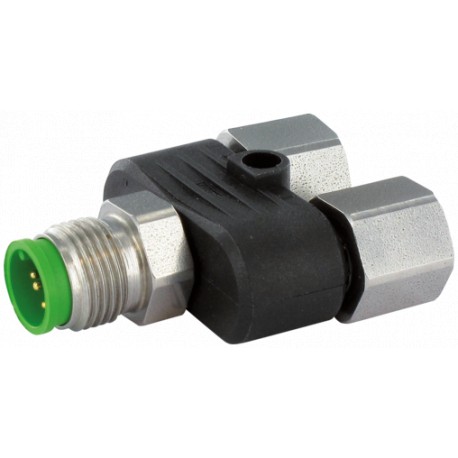

7002-42141-0000000 MURRELEKTRONIK T-coupler M12 male / 2x M12 female shielded, V2A
$0.00USD
3697 in stock
Key Specifications
Form:42141
Coding:A-coded
Material:PUR
Standards:DIN EN 61076-2-101 (M12)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 42141 |
| Coding | A-coded |
| Material | PUR |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Mounting method | inserted, tightened |
| Locking material | Stainless steel 1.4305 (V2A) |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (gasket) | FKM |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C |
| Material (contact) | Copper alloy |
| Rated surge voltage | 1.5 kV |
| Material (contact surface) | Au |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | 30 V AC/DC |
| Product article number of manufacturer | 7002-42141-0000000 |
| suitable for corrugated tube (internal Ø) | without |
Product Description
T-Coupler M12 male/2xM12 female A-cod shielded V2A5-pol. / 2x 5-pol.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
