7002-19181-9790050

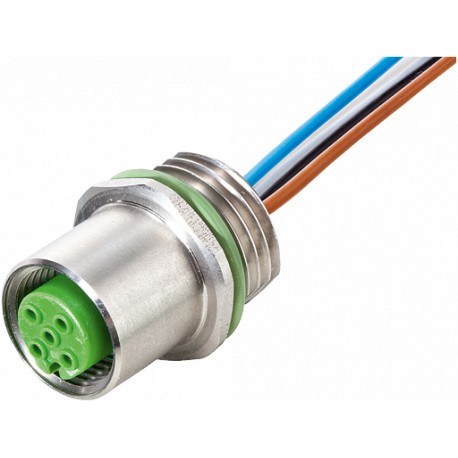

7002-19181-9790050 MURRELEKTRONIK M12 female receptacle A-cod. front mount V2A PP 12x0,14 0.5m
$0.00USD
3892 in stock
Key Specifications
EAN:4048879325264
Form:19181
Coding:A-coded
eClass:27279218
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879325264 |
| Form | 19181 |
| Coding | A-coded |
| eClass | 27279218 |
| Weight: | 0.045 kg |
| Art.No.: | 7002-19181-9790050 |
| Outer Ø | 1.25 mm ±5% |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 979 |
| No. of poles | 12 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PP (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Stainless steel 1.4305 (V2A) |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW14) |
| Material (gasket) | FKM |
| Operating voltage | max. 30 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Material (contact) | Copper alloy |
| Bend radius (fixed) | 5 × outer Ø |
| Rated surge voltage | 0.8 kV |
| Bend radius (moving) | 15 × outer Ø |
| No./diameter of wires | 12 × 0.14 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+85 °C |
| Material (contact surface) | Au |
| Temperature range (mobile) | -25...+85 °C |
| Operating current per contact | max. 1.5 A |
Product Description
M12 female recept. A-cod. front V2ATPE-wires 12x0.14 0.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
