7000-PS202-8611000

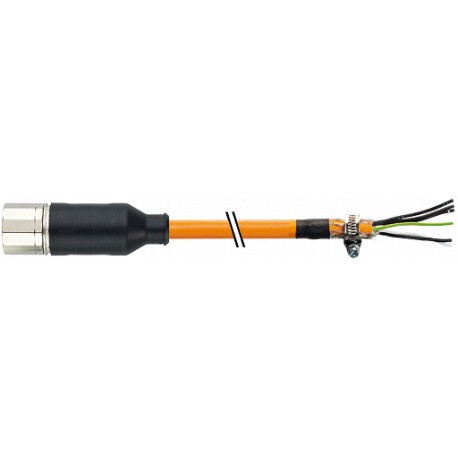

7000-PS202-8611000 MURRELEKTRONIK M23 Servo cable specification: 6FX5002-5DG01-1BA0
$0.00USD
4856 in stock
Key Specifications
EAN:4048879734110
Form:PS202
Shield:yes
eClass:27279218
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879734110 |
| Form | PS202 |
| Shield | yes |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 10.4 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable number | 861 |
| Jacket Color | orange |
| Specification | 6FX5008-1BA11 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±30°/m |
| Wire isolation | TPM (bk num, gnye) |
| Diameter (core) | 4× 2.5 + 2× 1.5 mm² |
| Approval (cable) | UL (AWM-Style 2570/10492), CSA |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M23 (SW27) |
| Material (jacket) | PVC (UL/CSA) (=MC500) |
| Operating voltage | 600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5) |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 0.1 Mio. |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5) |
| Bend radius (moving) | 18× outer Ø |
| No./diameter of wires | (4G1.5 + (2× 1.5)C)-C |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²) |
| suitable for corrugated tube (internal Ø) | 16 mm |
Product Description
M23 servo cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
