In Stock Hot Product
7000-PS101-8211300

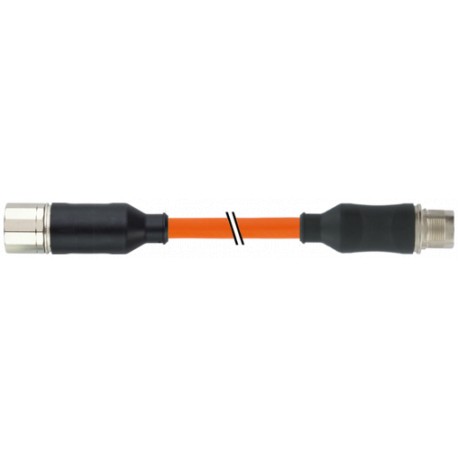

7000-PS101-8211300 MURRELEKTRONIK M23 SERVO CABLE Specification: 6FX8002-5DA05-1BD0
$0.00USD
3239 in stock
Key Specifications
Form:PS101
Shield:yes
Material:PUR
Outer Ø:11.6 mm ±5%
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | PS101 |
| Shield | yes |
| Material | PUR |
| Outer Ø | 11.6 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable length | 13 m |
| Cable number | 821 |
| Jacket Color | orange |
| Material group | IEC 60664-1, category I |
| Torsion stress | ±30°/m |
| Wire isolation | TPM (bk num, gnye) |
| Diameter (core) | 4× 2.5 + 2× 1.5 mm² |
| Approval (cable) | cURus (AWM-Style 21223/10492) |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M23 (SW27) |
| Material (jacket) | PUR (UL/CSA) (=MC800+) |
| Operating voltage | 600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5) |
| Temperature range | -25...+85 °C, depending on cable quality |
| C-track properties | 10 Mio. |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5) |
| Bend radius (moving) | 7.5× outer Ø |
| No./diameter of wires | (4G1.5 + (2× 1.5)C)-C |
| Temperature range (fixed) | -50...+80 °C |
| Temperature range (mobile) | -35...+70 °C |
| Operating current per contact | Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²) |
| Product article number of manufacturer | 7000-PS101-8211300 |
| suitable for corrugated tube (internal Ø) | 16 mm; 23 mm |
Product Description
M23 SERVO CABLE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
