7000-P8391-P830100

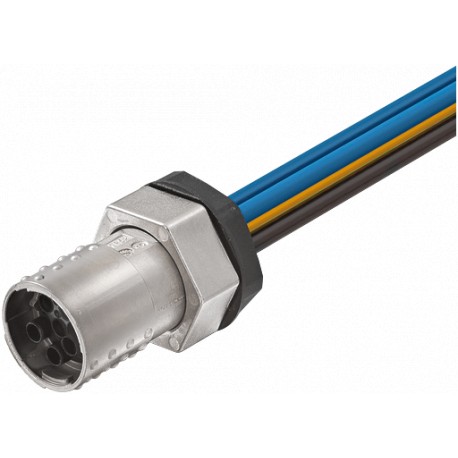

7000-P8391-P830100 MURRELEKTRONIK MQ15-X-Power female receptacle front mount shielded PVC 6x1.5 1m
$0.00USD
4253 in stock
Key Specifications
AWG:similar to AWG 16
EAN:4048879798013
Form:P8391
eClass:27279220
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 16 |
| EAN | 4048879798013 |
| Form | P8391 |
| eClass | 27279220 |
| Weight: | 0.256 kg |
| Art.No.: | 7000-P8391-P830100 |
| Material | Brass, nickel plated |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| No. of poles | 6 |
| Test voltage | 2 500 V AC |
| Configuration | fully used |
| Mating cycles | ≥ 500 |
| Packaging unit | 1 |
| Diameter (core) | 6 × 1.5 mm² |
| Mounting method | inserted, tightened |
| Locking of ports | Quick connection, 1/4 turn |
| Operating voltage | max. 600 V AC (Power); max. 63 V AC/DC (Signal) |
| Temperature range | -40...+90 °C, depending on cable quality |
| country of origin | DE |
| Material (contact) | Copper alloy |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 5 × outer Ø |
| Rated surge voltage | 2.5 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Cable identification | P83 |
| Wire-Ø incl. isolation | 3.1 mm ±5% |
| Color/numbering of wires | PVC (bk, bl, num, gnye) |
| Material (wire isolation) | PVC |
| Material (contact carrier) | PA |
| Material (contact surface) | Ag |
| Operating current per contact | max. 13 A (Power); max. 10 A (Signal) |
Product Description
MQ15-X-Power fem. receptable shielded front mountwires PVC 6x1.5 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
