7000-P8183-0000000

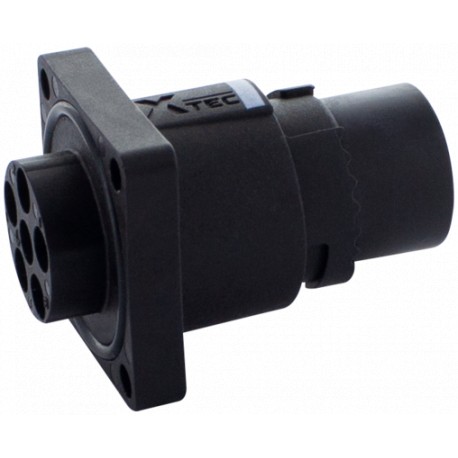

7000-P8183-0000000 MURRELEKTRONIK MQ15-X-Power male receptacle front mount only housing
$0.00USD
3181 in stock
Key Specifications
Weight::0.011 kg
Art.No.::7000-P8183-0000000
Country of origin::DE
Shielded (Technical Data):no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight: | 0.011 kg |
| Art.No.: | 7000-P8183-0000000 |
| Country of origin: | DE |
| Shielded (Technical Data) | no |
| Connection (Technical Data) | Crimp |
| No. of poles (Technical Data) | 6 |
| Material gasket (Technical Data) | NBR |
| Material contact (Technical Data) | Copper alloy |
| Material housing (Technical Data) | PA |
| Pollution Degree (Technical Data) | 3 |
| Mating cycles min. (Technical Data) | 500 |
| Rated surge voltage (Technical Data) | 6 kV |
| Family construction form (Technical Data) | MQ15 |
| Operating temperature max. (Technical Data) | 90 °C |
| Operating temperature min. (Technical Data) | -25 °C |
| Combustibility class (UL94) (Technical Data) | HB |
| Connection cross section max. (Technical Data) | 2,5 mm² |
| Connection cross section min. (Technical Data) | 1,5 mm² |
| Overvoltage category (EN 60950-1) (Technical Data) | III |
| Degree of protection (EN IEC 60529) (Technical Data) | IP67 |
| Additional condition protection degree (Technical Data) | inserted, screwed |
| Operating current per power contact max. (Technical Data) | 16 A |
| Operating current per signal contact max. (Technical Data) | 10 A |
| Operating voltage AC per power contact max. (Technical Data) | 600 V |
| Operating voltage AC per signal contact max. (Technical Data) | 63 V |
| Operating voltage DC per signal contact max. (Technical Data) | 63 V |
