7000-P8181-P800100

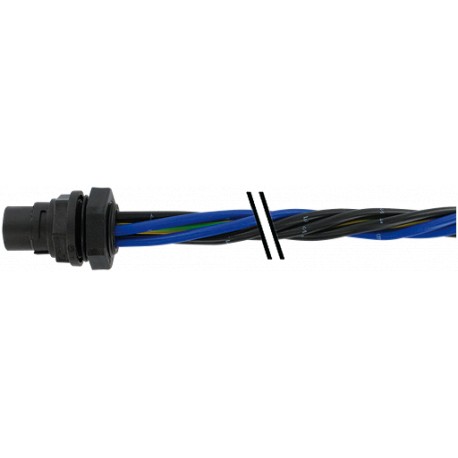

7000-P8181-P800100 MURRELEKTRONIK MQ15-X-Power male receptacle front mount PVC 6x2,5 UL/CSA 1,0m
$0.00USD
4249 in stock
Key Specifications
AWG:similar to AWG 14
EAN:4048879590877
Form:P8181
eClass:27279220
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 14 |
| EAN | 4048879590877 |
| Form | P8181 |
| eClass | 27279220 |
| Weight: | 0.206 kg |
| Art.No.: | 7000-P8181-P800100 |
| Material | Brass, nickel plated |
| Outer Ø | 3.7 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | P80 |
| No. of poles | 6 |
| Test voltage | 2 500 V AC |
| Configuration | fully used |
| Mating cycles | ≥ 500 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC (bk, bl, num, gnye) |
| Diameter (core) | 6 × 2.5 mm² |
| Material (wire) | Cu wire, tin plated |
| Mounting method | inserted, tightened |
| Nominal voltage | 600 V |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking of ports | Quick connection, 1/4 turn |
| Pollution Degree | 3 |
| Operating voltage | max. 600 V AC (Power); max. 63 V AC/DC (Signal) |
| Temperature range | -40...+70 °C, depending on cable quality |
| country of origin | DE |
| Material (contact) | Copper alloy |
| thermal resistance | flame retardant UL VW1, CSA FT1 |
| Construction (core) | stranded wire class 5 (EN 60228) |
| Rated surge voltage | 2.5 kV |
| Cable identification | P80 |
| No./diameter of wires | 6 × 2.5 mm² |
| customs tariff number | 85444290 |
| Wire-Ø incl. isolation | 3.7 mm ±5% |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -40...+70 °C |
| Material (contact carrier) | PA |
| Material (contact surface) | Ag |
| Operating current per contact | max. 16 A (Power); max. 10 A (Signal) |
