7000-P7281-9440050

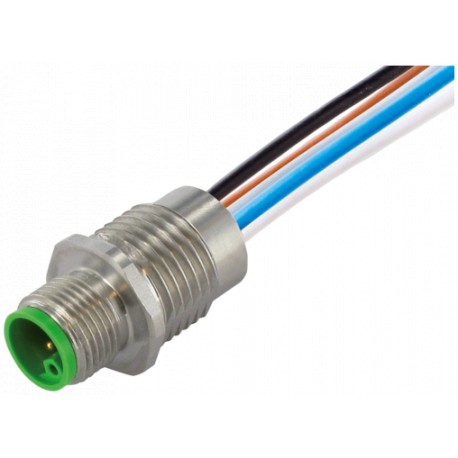

7000-P7281-9440050 MURRELEKTRONIK M12 Power T-coded male receptacle front mountwires PUR 4x1.5 0,5m
$0.00USD
3659 in stock
Key Specifications
Form:P7281
Coding:T-coded
Shield:no
Protection:IP65, IP67 mounted and tightened
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | P7281 |
| Coding | T-coded |
| Shield | no |
| Protection | IP65, IP67 mounted and tightened |
| Cable length | 0,5 m |
| Mounting set | Screw thread (M16×1.5 mm) mounting nut |
| No. of poles | 4-pole |
| Material group | IEC 60664-1, category I |
| Material (wire) | Cu wire, tin plated |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | Flange (SW17) |
| Operating voltage | max. 63 V DC |
| Temperature range | -25...+85 °C, depending on cable quality |
| Rated surge voltage | 1.5 kV |
| Cable identification | 944 |
| Wire-Ø incl. isolation | 2.4 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Material (wire isolation) | PUR |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 12 A |
| Product article number of manufacturer | 7000-P7281-9440050 |
Product Description
M12 Power male recept. T-cod. front
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
