In Stock Hot Product
7000-P4902-0000000

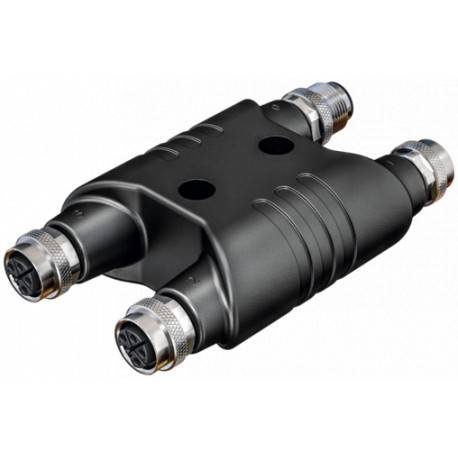

7000-P4902-0000000 MURRELEKTRONIK H coupler M12 male L-coded/ 3x M12 female L-coded
$0.00USD
3741 in stock
Key Specifications
Form:P4902
Coding:L-coded
Material:TPU
Standards:IEC 61076-2-111
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | P4902 |
| Coding | L-coded |
| Material | TPU |
| Standards | IEC 61076-2-111 |
| Protection | IP65, IP67, IP68 inserted and tightened (EN 60529) |
| LED display | no |
| No. of poles | 5 |
| Mounting method | inserted, tightened |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Operating voltage | max. 63 V DC |
| Temperature range | -30...+90 °C |
| Material (contact) | Brass, gold plated |
| Operating current per contact | max. 16 A |
| Product article number of manufacturer | 7000-P4902-0000000 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
