7000-C0505-5470000

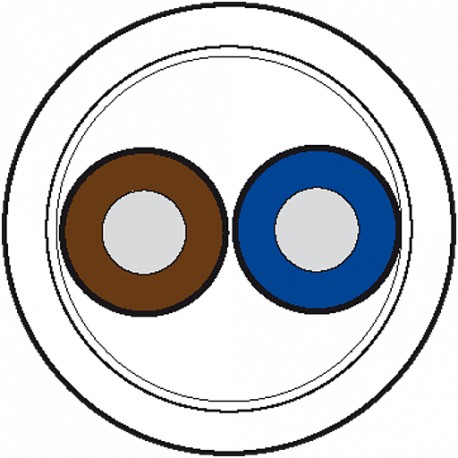

7000-C0505-5470000 MURRELEKTRONIK Cable drum Ø 500MM PUR 2x0.5 shielded blue UL/CSA+drag chain 500m
$0.00USD
4843 in stock
Key Specifications
AWG:similar to AWG 20
EAN:4048879677578
Shield:yes
eClass:27062011
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 20 |
| EAN | 4048879677578 |
| Shield | yes |
| eClass | 27062011 |
| Cable Type | 3 (PUR) |
| Jacket Color | blue |
| Test voltage | 3000 V AC |
| Color (jacket) | blue |
| Packaging unit | 1 |
| Diameter (core) | 2× 0.5 mm² |
| Material (wire) | Cu wire, tin plated |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 39 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM-Style 20233/10493); CE conform |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.2 mm ±5% |
| country of origin | DE |
| Cable weight [g/m] | 51,70 |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 19× 0.18 mm |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 547 |
| optical shield cover | min. 85% |
| Current load capacity | to DIN VDE 0298-4 |
| Single wire Ø (core) | 0.18 mm |
| Stranding combination | 2 wires twisted |
| customs tariff number | 85444995 |
| Shore hardness (jacket) | 90 ±5 A |
| Wire-Ø incl. isolation | 1.46 mm ±5% |
| Color/numbering of wires | br, bl |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -25...+80 °C |
| Shore hardness (wire isolation) | 70 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
Product Description
cable drum Ø 500MM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
