7000-C0201-2430000
7000-C0201-2430000 MURRELEKTRONIK Cable drum Ø 355MM PUR 5x0.34 shielded gray UL/CSA+drag chain 100m
$0.00USD
3923 in stock
Key Specifications
:min. 80%
AWG:similar to AWG 22
EAN:4048879715416
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| min. 80% | |
| AWG | similar to AWG 22 |
| EAN | 4048879715416 |
| Shield | yes |
| eClass | 27062011 |
| Weight: | 6.923 kg |
| Art.No.: | 7000-C0201-2430000 |
| Outer Ø | 5.6 mm ±5% |
| Cable Type | 3 (PUR) |
| Jacket Color | gray |
| Test voltage | 2 000 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | gray |
| Packaging unit | 1 |
| Torsion stress | ±30°/m |
| Wire isolation | PP (br, wh, bl, bk, gr) |
| Diameter (core) | 5 × 0.34 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Approval (cable) | cRUus (AWM-Style 20549/10493); CE conform |
| Material (jacket) | PUR (UL/CSA) |
| Outer-Ø (jacket) | 5.6 mm ±5% |
| country of origin | IT |
| C-track properties | 5 Mio. |
| Cable weight [g/m] | 57,20 |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Bend radius (fixed) | 5 × outer Ø |
| Construction (core) | 42 × 0.1 mm (multi-strand wire class 6) |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 10 × outer Ø |
| Cable identification | 243 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| No./diameter of wires | 5 × 0.34 mm² |
| Single wire Ø (core) | 0.1 mm |

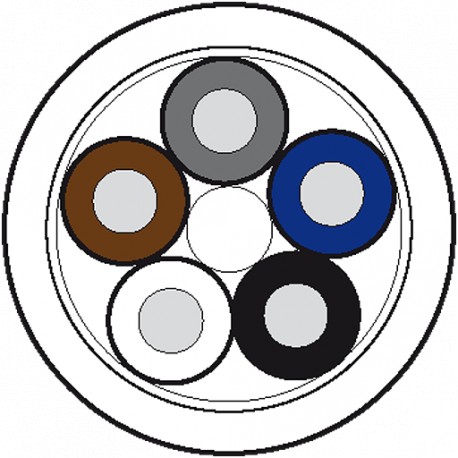

| Stranding combination | 5 wires twisted around central filler |
| customs tariff number | 85444995 |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Shore hardness (jacket) | 90 ±5 A |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh, gr |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -25...+80 °C |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Shore hardness (wire isolation) | 70 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
