7000-99651-7961000

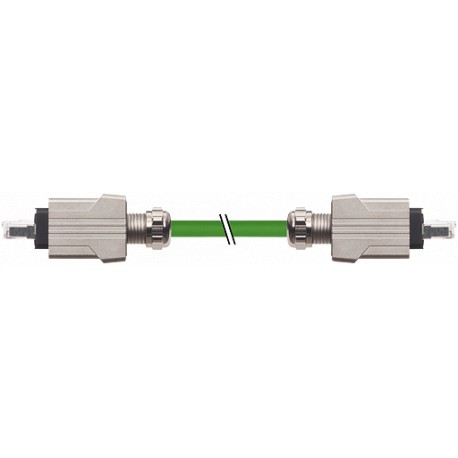

7000-99651-7961000 MURRELEKTRONIK Push Pull RJ45 / Push Pull RJ45, Profinet PUR 2x2xAWG22 shielded green UL/..
$0.00USD
4752 in stock
Key Specifications
:min. 85%
EAN:4048879113557
Form:99651
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| min. 85% | |
| EAN | 4048879113557 |
| Form | 99651 |
| Shield | yes |
| eClass | 27061801 |
| Housing | Zinc die casting, nickel-plated |
| Art.No.: | 7000-99651-7961000 |
| Outer Ø | 6.7 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable number | 796 |
| Jacket Color | green |
| Color (jacket) | green |
| Packaging unit | 1 |
| Wire isolation | PE (wh, ye, bl, or) |
| Diameter (core) | 2×2×AWG22 |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Locking of ports | Push Pull |
| Pollution Degree | 3 |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 50 V DC |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Temperature range | -40...+70 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 3 Mio. |
| Cable weight [g/m] | 71 |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 5 × outer Ø |
| Transfer parameters | CAT5e, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Alternative product: | Product ComparisonMale straight – male straightRJ45PP – RJ45PP, 4-poleshieldedPush PullCAT5ewithout cable sleevesFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm99651CablesCable number796No./diameter of wires2×2×0.34 mm²Wire isolationPE (wh, ye, bl, or)C-track properties3 Mio.Jacket ColorgreenMaterial (jacket)PUR (UL/CSA)Outer Ø6.7 mm ±5%Bend radius (moving)12 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-30...+70 °CCable identification796Approval (cable)UL (AWM-Style 20233/11602), CSA; CECable weight [g/m]71Material (wire)Cu wire, bareResistor (core)max. 55 Ω/km (20 °C)Diameter (core)2×2×AWG22Material (wire isolation)PEWire-Ø incl. isolation1.4 mm ±5%Color/numbering of wireswh, ye, bl, orShieldyesmin. 85%Material (jacket)PUROuter-Ø (jacket)6.7 mm ±5%Color (jacket)greenthermal resistanceflame retardantNominal voltage300 VTemperature range (fixed)-40...+80 °CTemperature range (mobile)-30...+70 °CBend radius (fixed)5 × outer ØBend radius (moving)12 × outer ØNo. of bending cycles (C-track)max. 3 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3.3 m/sAcceleration (C-track)max. 2 m/s²Technical DataOperating voltagemax. 50 V DCOperating current per contactmax. 1.75 ALocking of portsPush PullProtectionIP65 and IP67 when plugged and screwed down (EN 60529)HousingZinc die casting, nickel-platedTransfer parametersCAT5e, Class D (ISO/IEC 11801:2002), (EN 50173-1)General dataPollution Degree3Temperature range-40...+70 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444210EAN4048879113557eClass27061801Packaging unit1 |
| Bend radius (moving) | 12 × outer Ø |
| Cable identification | 796 |
| No./diameter of wires | 2×2×0.34 mm² |
| customs tariff number | 85444210 |
| Acceleration (C-track) | max. 2 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Material (wire isolation) | PE |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Operating current per contact | max. 1.75 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
