7000-99605-0000000

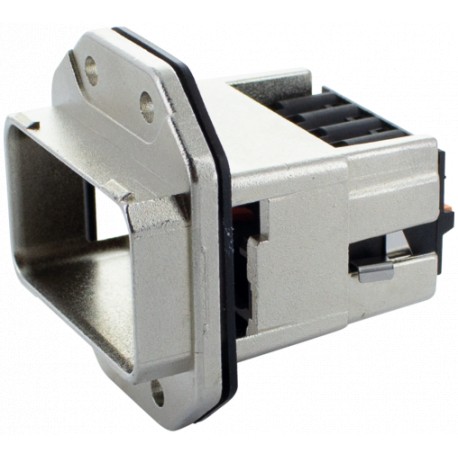

7000-99605-0000000 MURRELEKTRONIK Wall bushing for push pull powerwith spring-cage connection, flexible codi..
$0.00USD
4687 in stock
Key Specifications
Form:99605
Housing:Zinc die casting, nickel-plated
Connection:with spring clamp connection
Protection:IP65 and IP67 when plugged and screwed down (EN 60529)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 99605 |
| Housing | Zinc die casting, nickel-plated |
| Connection | with spring clamp connection |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| No. of poles | 5 |
| Mating cycles | ≥ 100 |
| Locking of ports | PPP, 5-pole |
| Pollution Degree | 2 |
| Operating current | 16 A |
| Operating voltage | 24 V |
| Temperature range | -40...+70 °C |
| Flammability class | (UL94): VO |
| Rated surge voltage | 4.0 kV |
| Connection cross section | 0.75...2.5 mm² (AWG 18...13) |
| Product article number of manufacturer | 7000-99605-0000000 |
Product Description
Wall bushing for push pull power
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
