In Stock Hot Product
7000-88511-0000000

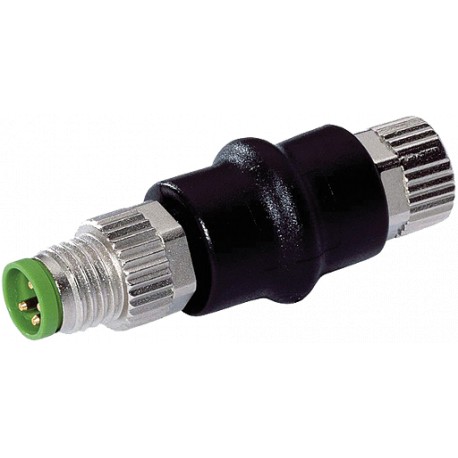

7000-88511-0000000 MURRELEKTRONIK ADAPTOR M8 MALE / M8 FEMALE CONF. 1,3,4
$0.00USD
3888 in stock
Key Specifications
EAN:4048879118538
Form:88511
eClass:27143423
Weight::0.01 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879118538 |
| Form | 88511 |
| eClass | 27143423 |
| Weight: | 0.01 kg |
| Art.No.: | 7000-88511-0000000 |
| Material | PUR |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW9) |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Rated surge voltage | 1.5 kV |
| customs tariff number | 85369010 |
| Test isolation voltage | 0.8 kV eff/rms |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
Product Description
Adaptor M8 male / M8 female A-cod.3-pol. / 4-pol., conf. 1,3,4
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
