7000-88245-0500100

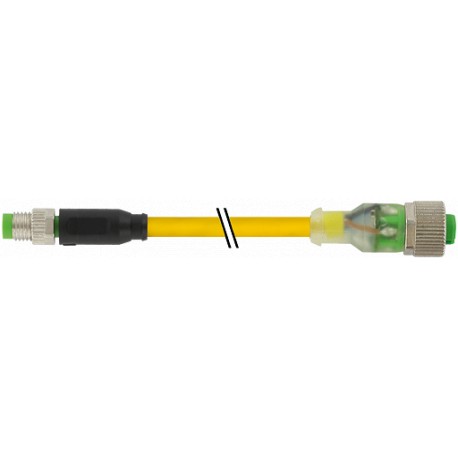

7000-88245-0500100 MURRELEKTRONIK M8 male 0° / M12 female 0° LED PUR 3x0.25 yellow UL/CSA + robot + drag cha..
$0.00USD
4585 in stock
Key Specifications
AWG:similar to AWG 24
EAN:4048879309905
Form:88245
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 24 |
| EAN | 4048879309905 |
| Form | 88245 |
| Shield | no |
| eClass | 27279218 |
| Art.No.: | 7000-88245-0500100 |
| Outer Ø | 4.3 mm ±5% |
| Cable Type | 5 (PUR schweißfunkenbeständig) |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | yellow |
| Test voltage | 2500 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | yellow |
| Packaging unit | 1 |
| Torsion stress | ±360°/m |
| Wire isolation | PP (br, bl, bk) |
| Diameter (core) | 3 × 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Approval (cable) | cRUus (AWM-Style 20549/10493); CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securing |
| Material (jacket) | PUR (UL/CSA), welding spark |
| Operating voltage | 24 V DC ±25% |
| Outer-Ø (jacket) | 4.3 mm ±5% |
| country of origin | DE |
| C-track properties | 10 Mio. |
| Cable weight [g/m] | 26,40 |
| thermal resistance | flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant |
| Bend radius (fixed) | 5 × outer Ø |
| Construction (core) | 32 × 0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Alternative product: | Product ComparisonMale straight – female straightM8 – M12, 3-pole2 × LED (PNP), (NPN) on requestFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm88245CablesNo./diameter of wires3 × 0.25 mm²Wire isolationPP (br, bl, bk)C-track properties10 Mio.Material (jacket)PUR (UL/CSA), welding sparkOuter Ø4.3 mm ±5%Bend radius (moving)10 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-25...+80 °CCable identification050Cable Type5 (PUR schweißfunkenbeständig)Approval (cable)cRUus (AWM-Style 20549/10493); CE conformCable weight [g/m]26,40Material (wire)Cu wire, bareResistor (core)max. 79 Ω/km (20 °C)Single wire Ø (core)0.1 mmConstruction (core)32 × 0.1 mm (multi-strand wire class 6)Diameter (core)3 × 0.25 mm²AWGsimilar to AWG 24Material (wire isolation)PPMaterial property (wire isolation)CFC-, halogen-, cadmium-, silicone- and lead-freeShore hardness (wire isolation)74 ±3 DWire-Ø incl. isolation1.25 mm ±5%Color/numbering of wiresbr, bk, blStranding combination3 wires twistedShieldnoMaterial (jacket)PURMaterial property (jacket)CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistantShore hardness (jacket)58 ±3 DOuter-Ø (jacket)4.3 mm ±5%Color (jacket)yellowchemical resistancegood resistance to oil, gasoline and chemicals (EN 60811-404)thermal resistanceflame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistantNominal voltage300 V ACTest voltage2500 V ACCurrent load capacityto DIN VDE 0298-4Temperature range (fixed)-40...+80 °C, (+90 °C at max. 10 000 operating hours)Temperature range (mobile)-25...+80 °C, (+90 °C at max. 10 000 operating hours)Bend radius (fixed)5 × outer ØBend radius (moving)10 × outer ØNo. of bending cycles (C-track)max. 10 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3.3 m/sAcceleration (C-track)max. 5 m/s²Torsion stress±360°/mNo. of torsion cyclesmax. 1 Mio. (25 °C)Torsion speed35 cycles/minJacket ColoryellowTechnical DataOperating voltage24 V DC ±25%Operating voltage (only UL listed)max. 30 V DCOperating current per contactmax. 4 ALocking of portsScrew thread M8/M12 × 1 mm (recommended torque 0.4/0.6 Nm) self-securingProtectionIP66K, IP67 inserted and tightened (EN 60529)Locking materialZinc die casting, matte nickel platedRated surge voltage0.8 kVCommercial datacountry of originDEcustoms tariff number85444290EAN4048879309905eClass27279218Packaging unit1 |
| Bend radius (moving) | 10 × outer Ø |
| Cable identification | 050 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 1 Mio. (25 °C) |
| No./diameter of wires | 3 × 0.25 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 3 wires twisted |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Shore hardness (jacket) | 58 ±3 D |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant |
| Temperature range (mobile) | -25...+80 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
| Shore hardness (wire isolation) | 74 ±3 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Operating voltage (only UL listed) | max. 30 V DC |
Product Description
M8 male 0° / M12 female 0° A-cod. LEDPUR 3x0.25 ye UL/CSA+robot+drag ch. 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
