In Stock Hot Product
7000-78341-9780100

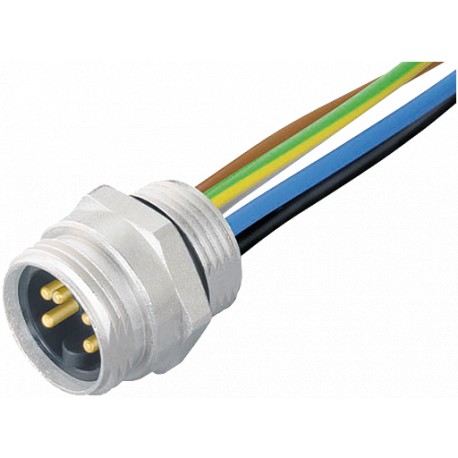

7000-78341-9780100 MURRELEKTRONIK 7/8' MALE FLANGE PLUG Wire 5X0.75 1m
$0.00USD
4286 in stock
Key Specifications
EAN:4048879364102
Form:78341
eClass:27279218
Weight::0.086 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879364102 |
| Form | 78341 |
| eClass | 27279218 |
| Weight: | 0.086 kg |
| Art.No.: | 7000-78341-9780100 |
| Outer Ø | 3.1 mm ±5% |
| Protection | IP68 inserted and tightened (EN 60529) |
| Cable number | 978 |
| Material group | IEC 60664-1, category III |
| Packaging unit | 1 |
| Wire isolation | PVC (br, wh, bl, bk, gnye) |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Compression gland | 7/8" (SW24) |
| Operating voltage | max. 300 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Bend radius (fixed) | 10 × outer Ø |
| No./diameter of wires | 5 × 0.75 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -25...+85 °C |
| Temperature range (mobile) | -10...+50 °C |
| Operating current per contact | max. 6 A |
Product Description
7/8'' male recept. frontWires 5x0.75 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
