7000-78221-0000000

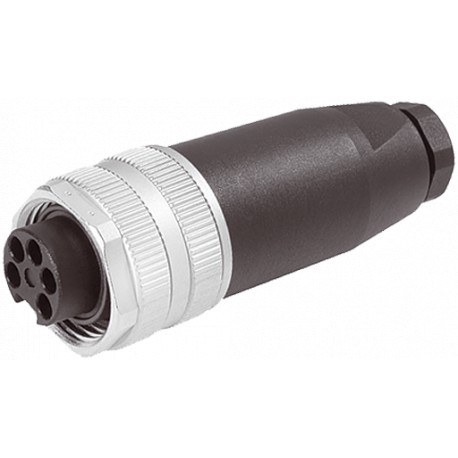

7000-78221-0000000 MURRELEKTRONIK 7/8'' FEMALE 0° FIELD-WIREABLE SCREW 5-pol. clamp section 10-12 mm
$0.00USD
3998 in stock
Key Specifications
EAN:4048879134712
Form:78221
eClass:27279218
Weight::0.046 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879134712 |
| Form | 78221 |
| eClass | 27279218 |
| Weight: | 0.046 kg |
| Art.No.: | 7000-78221-0000000 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Packaging unit | 1 |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Operating voltage | max. 250 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| customs tariff number | 85366990 |
| Connection cross section | max. 1.5 mm² |
| Sealing range (cable Ø) | 10...12 mm |
| Operating current per contact | max. 9 A |
Product Description
7/8'' female 0° screw terminal5-pol., max. 1,5mm², 6,8 - 12,5mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
