7000-78141-0000000

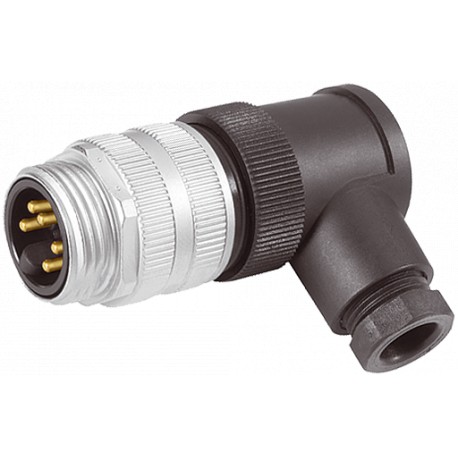

7000-78141-0000000 MURRELEKTRONIK 7/8'' MALE 90° FIELD-WIREABLE SCREW 5-pol. clamp section 6-8,7mm
$0.00USD
4188 in stock
Key Specifications
EAN:4048879134750
Form:78141
eClass:27279218
Weight::0.058 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879134750 |
| Form | 78141 |
| eClass | 27279218 |
| Weight: | 0.058 kg |
| Art.No.: | 7000-78141-0000000 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Packaging unit | 1 |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Operating voltage | max. 250 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| customs tariff number | 85366990 |
| Connection cross section | max. 1.5 mm² |
| Sealing range (cable Ø) | 6...8.7 mm |
| Operating current per contact | max. 9 A |
Product Description
7/8'' male 90° screw terminal5-pol., max. 1,5mm², 6 -8,7mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
