In Stock Hot Product
7000-78081-0000000

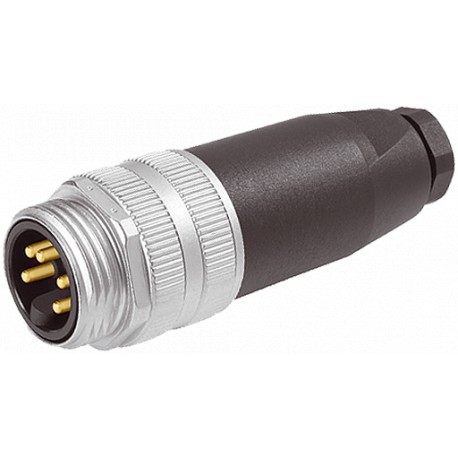

7000-78081-0000000 MURRELEKTRONIK 7/8'' MALE 0° FIELD-WIREABLE SCREW 5-pol. clamp section 6-8 mm
$0.00USD
3806 in stock
Key Specifications
EAN:4048879134781
Form:78081
eClass:27279218
Art.No.::7000-78081-0000000
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879134781 |
| Form | 78081 |
| eClass | 27279218 |
| Art.No.: | 7000-78081-0000000 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Packaging unit | 1 |
| Locking of ports | Screw thread 7/8" (recommended torque 1.5 Nm) self-securing |
| Operating voltage | max. 250 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Alternative product: | Product ComparisonMale straight7/8", 5-poleScrew terminalsPlastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm78081Technical DataOperating voltagemax. 250 V AC/DCOperating current per contactmax. 9 AConnection cross sectionmax. 1.5 mm²Sealing range (cable Ø)6...8 mmLocking of portsScrew thread 7/8" (recommended torque 1.5 Nm) self-securingProtectionIP67 inserted and tightened (EN 60529)General dataTemperature range-25...+85 °CCommercial datacountry of originDEcustoms tariff number85366990EAN4048879134781eClass27279218Packaging unit1 |
| customs tariff number | 85366990 |
| Connection cross section | max. 1.5 mm² |
| Sealing range (cable Ø) | 6...8 mm |
| Operating current per contact | max. 9 A |
Product Description
7/8'' male 0° screw terminal5-pol., max. 1,5mm², 6 -8mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
