7000-74701-7770030

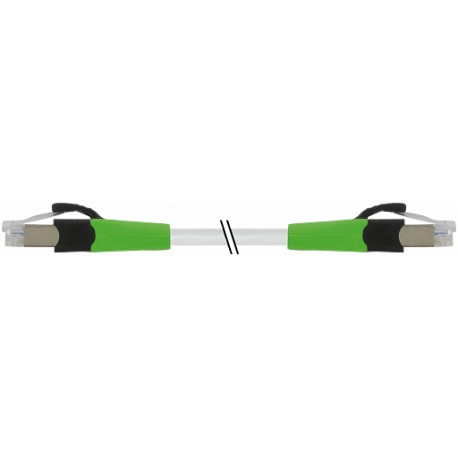

7000-74701-7770030 MURRELEKTRONIK RJ45 male 0° / RJ45 male 0° Cabinet-Line, Ethernet FRNC/LS0H 2x2xAWG26 shi..
$0.00USD
3047 in stock
Key Specifications
EAN:4048879569927
Form:74701
Shield:yes
eClass:27061801
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879569927 |
| Form | 74701 |
| Shield | yes |
| eClass | 27061801 |
| Material | PUR |
| Outer Ø | 5.0 mm ±5% |
| Protection | IP20 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 777 |
| Jacket Color | gray |
| Transfer rate | up to 100 Mbit/s full duplex |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | FRNC (wh, bl, wh, or) |
| Mounting method | inserted |
| Locking material | PA |
| Locking of ports | Snap-in connector |
| Pollution Degree | 3 |
| Material (jacket) | FRNC |
| Operating voltage | max. 60 V DC |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | HU |
| Bend radius (fixed) | 7.5× outer Ø |
| Rated surge voltage | 1.0 kV |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Bend radius (moving) | 10× outer Ø |
| No./diameter of wires | 2× 2× AWG26 |
| customs tariff number | 85444210 |
| Temperature range (fixed) | 0...+50 °C |
| Temperature range (mobile) | -20...+60 °C |
| Operating current per contact | max. 1.76 A |
| suitable for corrugated tube (internal Ø) | without |
Product Description
RJ45 male 0° / RJ45 male 0° shieldedFRNC/LS0H 2x2xAWG26 shielded gr 0,3m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
