7000-74641-7930100

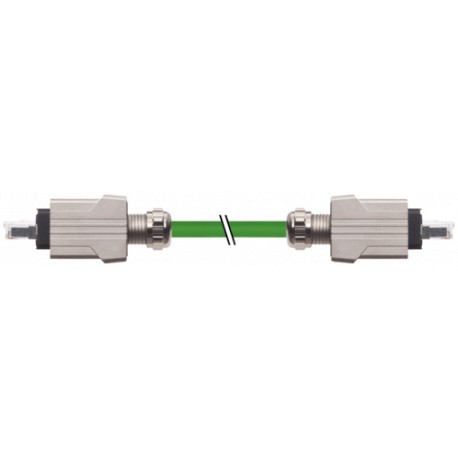

7000-74641-7930100 MURRELEKTRONIK RJ45 PUSH PULL 0° / RJ45 PUSH PULL 0° PUR 1x4xAWG22 shielded gn 1.0
$0.00USD
3592 in stock
Key Specifications
Form:74641
Shield:yes
Protection:IP65 and IP67 when plugged and screwed down (EN 60529)
Cable length:1 m
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 74641 |
| Shield | yes |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable length | 1 m |
| Test voltage | 2000 V AC (test duration 1 min) |
| Shield (Type) | Copper braid |
| Transfer rate | up to 100 Mbit/s full duplex |
| Color (jacket) | green |
| Material group | IEC 60664-1, category I |
| Torsion stress | ±180°/m |
| Diameter (core) | 1× 4× AWG22/19 |
| Material (wire) | Cu wire, tin plated |
| Nominal voltage | 300 V |
| Resistor (core) | max. 60 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM style 20549/10578); CE compliant |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Push Pull |
| Pollution Degree | 3 |
| Material (jacket) | PUR |
| Operating voltage | max. 60 V DC |
| Outer-Ø (jacket) | 6.6 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 69,3 g |
| thermal resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Bend radius (fixed) | 8× outer Ø |
| Construction (core) | 19× 0.160 mm |
| Rated surge voltage | 1.0 kV |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| chemical resistance | Oil resistance IEC 60811-2-1, ASTM Öle 1, ICEA S-82-552 Std. |
| Bend radius (moving) | 12× outer Ø |
| Cable identification | 793 |
| optical shield cover | min. 85% |
| No. of torsion cycles | max. 4 Mio. (25 °C) |
| Single wire Ø (core) | 0.16 mm |
| Wire-Ø incl. isolation | 1.6 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Material (wire isolation) | PE |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Operating current per contact | max. 1.5 A |
| Product article number of manufacturer | 7000-74641-7930100 |
| suitable for corrugated tube (internal Ø) | without |
Product Description
RJ45 Push Pull male 0°/RJ45 Push Pull male 0° AIDA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* only for products with UL/CSA approved cable
