In Stock Hot Product
7000-74005-0000000

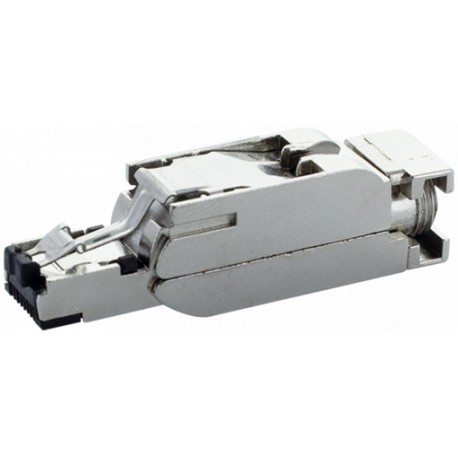

7000-74005-0000000 MURRELEKTRONIK RJ45 Heavy Duty male 0° 4pol. Profinet
$0.00USD
3701 in stock
Key Specifications
Protection:IP20
No. of poles:4
Mating cycles:500
Transfer rate:100 Mbit/s
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Protection | IP20 |
| No. of poles | 4 |
| Mating cycles | 500 |
| Transfer rate | 100 Mbit/s |
| Pollution Degree | 2 |
| Operating current | max. 720 mA; max. 28 mA (UL) |
| Operating voltage | 48 V DC |
| Temperature range | -30...+70 °C |
| Dimensions H×W×D | 14,02x16,4x56,5 |
| Material (contact) | Copper alloy |
| Material (housing) | Zinc alloy with nickel |
| Reconnection (cable) | 3 |
| Over voltage category | II |
| Sealing range (cable Ø) | 4x AWG24 / AWG22 |
| Material (contact carrier) | POM |
| Material (contact surface) | gold plated |
| Operating voltage (only UL listed) | 2.8 V DC |
| Product article number of manufacturer | 7000-74005-0000000 |
Product Description
RJ45 male 0° IDC
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
