7000-48001-6070800

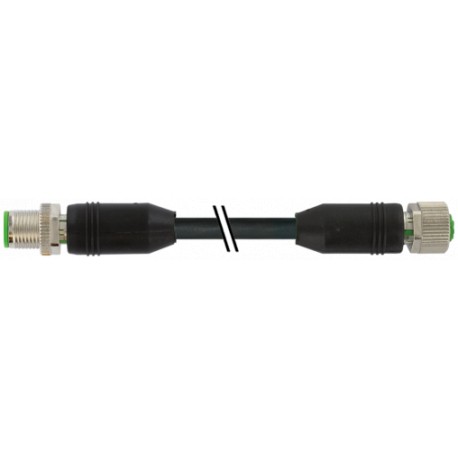

7000-48001-6070800 MURRELEKTRONIK M12 male 0° / M12 female 0° PVC 8x0.25 bk UL/CSA 8.0m
$0.00USD
4216 in stock
Key Specifications
AWG:similar to AWG 24
Form:48001
Shield:no
Outer Ø:6.0 mm ±5%
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 24 |
| Form | 48001 |
| Shield | no |
| Outer Ø | 6.0 mm ±5% |
| Cable Type | 1 (PVC) |
| Cable length | 8 m |
| Jacket Color | black |
| No. of poles | 8 |
| Test voltage | 2000 V AC |
| Color (jacket) | black |
| Material group | IEC 60664-1, category I |
| Wire isolation | PVC (bl, wh, gn, ye, gr, pk, rd, br) |
| Diameter (core) | 8× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | UL 300 V AC |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 2464/1731), CSA |
| Pollution Degree | 3 |
| Material (jacket) | PVC |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 6.0 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 58,3 g |
| Material (contact) | Copper alloy |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 607 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 8× 0.25 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 8 wires twisted around central filler |
| Shore hardness (jacket) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.2 mm ±5% |
| Color/numbering of wires | br, wh, rd, bl, pk, gr, ye, gn |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -30...+80 °C |
| Material (contact surface) | Au |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Temperature range (mobile) | -5...+80 °C |
| Shore hardness (wire isolation) | 45 ±5 D |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Product article number of manufacturer | 7000-48001-6070800 |
Product Description
M12 male 0° / M12 female 0° A-cod.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* only for products with UL/CSA approved cable
