In Stock Hot Product
7000-47301-0000000

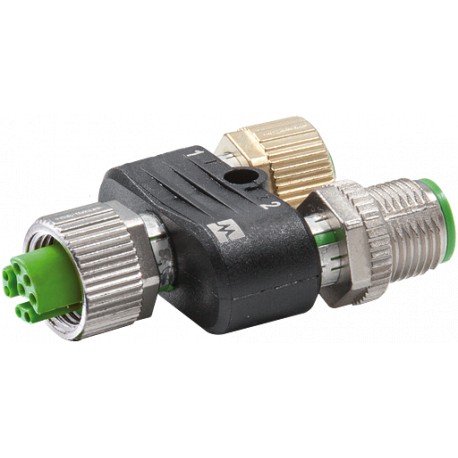

7000-47301-0000000 MURRELEKTRONIK T-coupler M12 female / M12 female+male shielded Y-cod. / D-cod. Ethernet +..
$0.00USD
4053 in stock
Key Specifications
EAN:4048879607759
Form:47301
Coding:Y-coded
eClass:27143423
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879607759 |
| Form | 47301 |
| Coding | Y-coded |
| eClass | 27143423 |
| Weight: | 0.034 kg |
| Art.No.: | 7000-47301-0000000 |
| Material | PUR |
| Protection | IP54 inserted and tightened (EN 60529) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Operating voltage | max. 30 V DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Rated surge voltage | 0.8 kV |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| customs tariff number | 85366990 |
| Operating current per contact | 4 A (Power), 0.5 A (Data) |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
