In Stock Hot Product
7000-47281-0000000

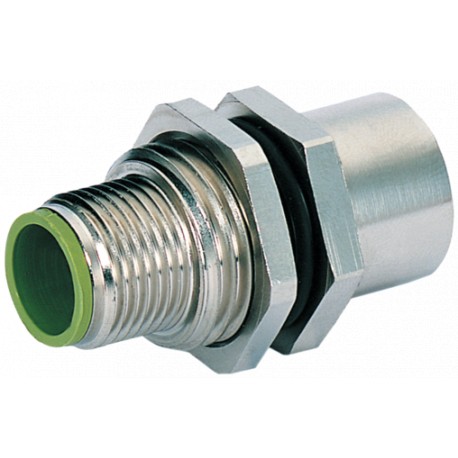

7000-47281-0000000 MURRELEKTRONIK M12 bulkhead receptacle Y-cod.
$0.00USD
4677 in stock
Key Specifications
Weight::0.027 kg
Art.No.::7000-47281-0000000
Country of origin::DE
Coding (Technical Data):Y
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight: | 0.027 kg |
| Art.No.: | 7000-47281-0000000 |
| Country of origin: | DE |
| Coding (Technical Data) | Y |
| duplex (Technical Data) | Full duplex |
| Mounting set (Technical Data) | M16 x 1.5 |
| Coating housing (Technical Data) | nickel plated |
| Mounting method (Technical Data) | inserted, screwed, Shaking protection |
| Material housing (Technical Data) | Brass |
| Pollution Degree (Technical Data) | 3 |
| Tightening torque (Technical Data) | 0,6 Nm |
| Width across flats (Technical Data) | SW19 |
| Rated surge voltage (Technical Data) | 0,8 kV |
| Transfer parameters (Technical Data) | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Family construction form (Technical Data) | M12 |
| Operating voltage DC max. (Technical Data) | 30 V |
| Operating temperature max. (Technical Data) | 85 °C |
| Operating temperature min. (Technical Data) | -25 °C |
| Data transmission rate max. (Technical Data) | 100 MBit/s |
| Material group (IEC 60664-1) (Technical Data) | I |
| Current operating per contact max. (Technical Data) | 6 A |
| Degree of protection (EN IEC 60529) (Technical Data) | IP65, IP67 |
| Additional condition protection degree (Technical Data) | inserted, screwed |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
