7000-46041-8021050

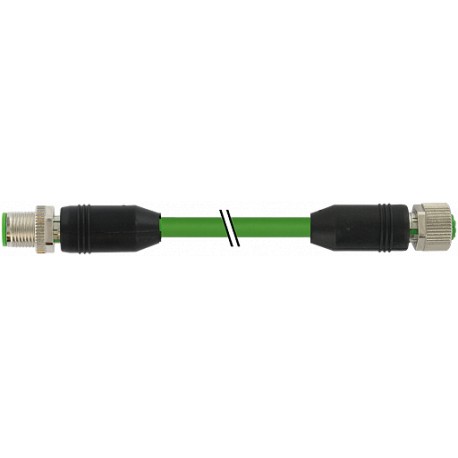

7000-46041-8021050 MURRELEKTRONIK M12 male 0° / M12 female 0° Cube67 PUR 0.5 + 0.25 shielded green UL/CSA + ..
$0.00USD
4008 in stock
Key Specifications
AWG:similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²)
EAN:4048879321839
Form:46041
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²) |
| EAN | 4048879321839 |
| Form | 46041 |
| Coding | A-coded |
| Shield | yes |
| eClass | 27061801 |
| Material | PUR |
| Outer Ø | 7.9 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| LED display | no |
| Jacket Color | green |
| No. of poles | 6 |
| Test voltage | 1500 V (wire/wire); 1200 V (wire/shield) |
| Color (jacket) | green |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±180°/m |
| Wire isolation | TPE (bl, wh, br, bk), (gr, pk) |
| Diameter (core) | 4× 0.5 + 2× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V AC |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (gasket) | FKM |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 7.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 5 Mio. |
| Cable weight [g/m] | 95,70 |
| Material (contact) | Copper alloy |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 28× 0.15 mm (0.5 mm²); 32× 0.1 mm (0.25 mm²); (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 802 |
| optical shield cover | min. 80% |
| No./diameter of wires | 4× 0.5 + 2× 0.25 mm² |
| Single wire Ø (core) | 0.15 mm (0.5 mm²); 0.1 mm (0.25 mm²) |
| customs tariff number | 85444290 |
| Travel speed (C-track) | max. 2 m/s |
| Shore hardness (jacket) | 89 ±5 A |
| Wire-Ø incl. isolation | 1.5 mm ±5% (0.5 mm²); 1.4 mm ±5% (0.25 mm²) |
| Color/numbering of wires | (bl, wh, br, bk) + (gr, pk) |
| Material (wire isolation) | TPE-E |
| Temperature range (fixed) | -50...+80 °C |
| Material (contact surface) | Au |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Temperature range (mobile) | -40...+80 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 10 m |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Shore hardness (wire isolation) | 55 ±5 D |
| Operating voltage (only UL listed) | 30 V AC/DC |
Product Description
M12 male 0° / M12 female 0° A-cod. shieldedPUR 4x0.5+2x0.25 shielded gn UL/CSA+drag ch. 10.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
