7000-44807-7940100

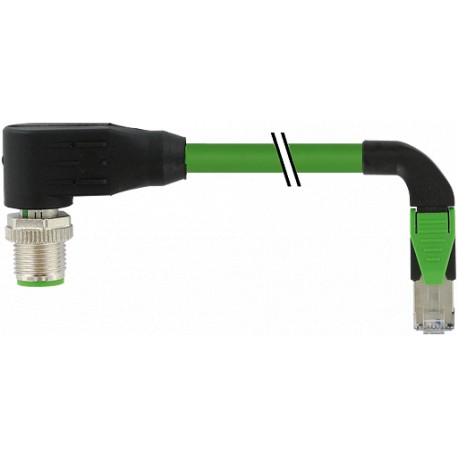

7000-44807-7940100 MURRELEKTRONIK M12 male 90° / RJ45 90° right Ethernet PUR 2x2xAWG22 shielded green UL/CSA..
$0.00USD
3343 in stock
Key Specifications
:min. 85%
AWG:similar to AWG 22
EAN:4048879666053
Form:44807
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| min. 85% | |
| AWG | similar to AWG 22 |
| EAN | 4048879666053 |
| Form | 44807 |
| Coding | D-coded |
| Shield | yes |
| eClass | 27061801 |
| Weight: | 0.101 kg |
| Art.No.: | 7000-44807-7940100 |
| Material | PUR |
| Outer Ø | 6.7 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP67 (M12) - IP20 (RJ45) |
| Jacket Color | green |
| Transfer rate | up to 100 Mbit/s full duplex |
| Color (jacket) | green |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PE (wh, ye, bl, or) |
| Diameter (core) | 2×2×AWG22/7 (0.355) |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20233/10578), CSA; CE |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 60 V DC |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 75,87 |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 6 × outer Ø |
| Construction (core) | 7 × 0.254 mm |
| Rated surge voltage | 1.0 kV |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 12 × outer Ø |
| Cable identification | 794 |
| No./diameter of wires | 2×2×0.34 mm² |
| customs tariff number | 85444210 |
| Wire-Ø incl. isolation | 1.55 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Material (wire isolation) | PE |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+60 °C |
| Operating current per contact | max. 1.5 A (20 °C) |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 male 90° D-cod. / RJ45 90° right shieldedPUR 1x4xAWG22 shielded gn UL/CSA 1m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
